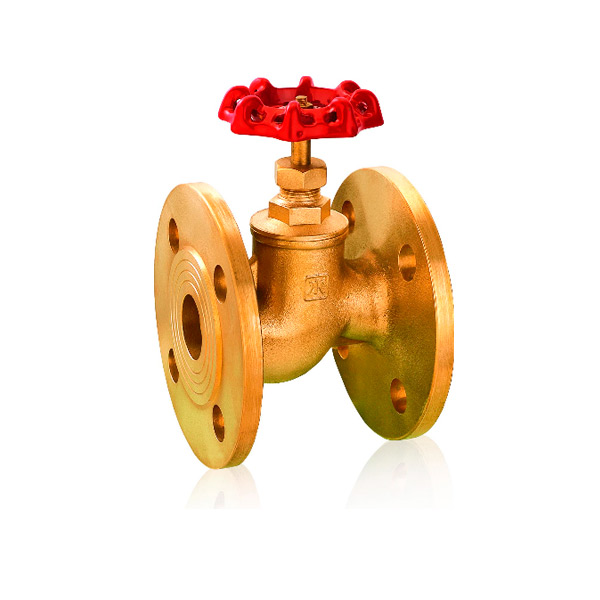

Brass Flanged Stop Valve JKL-314

Flange connection, convenient installation, accurate size and 100% leakage detection. The most advanced forging equipment in the world is used for one-time forming to ensure the stability of the valve body and prevent cracking and leakage.

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
  -  Jumbo Coil
  -  Plastic-Coated Copper Tubes
  -  Capillary Copper Tube
  -  Oxygen-Free Copper Tube
  -  High Strength Alloy Tube
  -  High Strength Copper Pipe
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)
Copper Wire Size 
- 3mm Wire
- 8mm Wire

Brass Flanged Stop Valve JKL-314 Certifications

Brass Flanged Stop Valve JKL-314 Advantages

Fast Material Supply. Have own copper bar Factory of Group
100% Leakage Test
Guaranteed Quality In Competitive Price
Complete R&D facilities and Excellent team
Strictly and perfect management in production
Have rich experience and strong ability to develop new products

Brass Flanged Stop Valve JKL-314 Application Fields

HVAC (Heating Ventilation and Air Conditioning)
City Gas Industry
Urban Water Supply and Drainage
Mechanical Equipment

Brass Flanged Stop Valve JKL-314 Performance Parameter

Body	CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR, as per request
Norminal Diameter	1/2"~2", DN15-DN50, can be customized
Norminal Pressure	2.5Mpa
Working Medium	Water, Non-causticity liquid, Saturated steam
Working Temperature	-20°C≤T≤99°C
Handle	Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type
Thread	ISO228/1, BSP, BSPT, NPT, ANSI BI 20.1 or as per request
Standard	AS4617, AS5200-012
