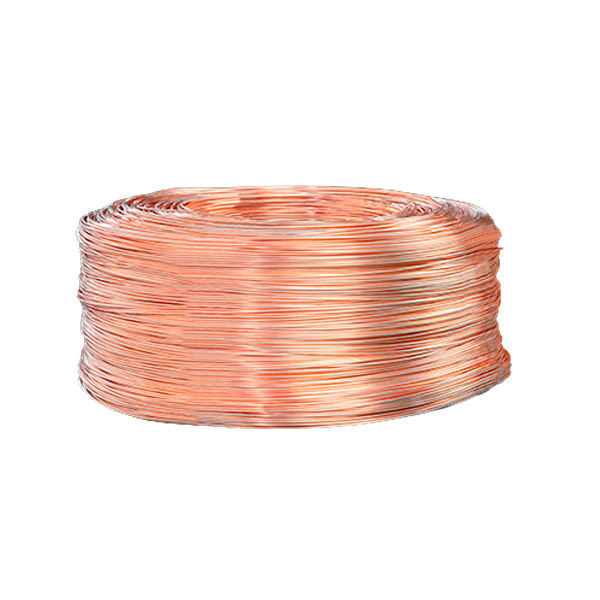

Bare Copper Wire for Electrical Purpose

Copper's excellent electrical and thermal conductivity provides the most essential, free-moving electrons which electrical wiring requires. Annealed copper cable must have low resistivity to electrical currents to ensure a power source can push current through. However, it's the combination of these following properties that make copper the industry standard choice.

Bare Copper Wire for Electrical Purpose Certifications
  • ISO9001
  • ISO14001
  • ISO45001
  • IATF 16949
  • CNSA
  • NSF

Bare Copper Wire for Electrical Purpose Performance Advantages

  • High dimensional accuracy

  • High heat dissipation performance

  • High cleanliness

  • Lightweight

Bare Copper Wire for Electrical Purpose Application Fields

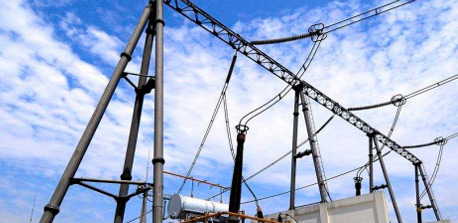

  • Power Transmission
    Power Transmission
  • 5G Communication
    5G Communication
  • EV
    EV
  • Appliance Industry
    Appliance Industry

Bare Copper Wire for Electrical Purpose Performance Parameter

Material typesBright low-oxygen wire ( electrical round copper wire )
Name of commodityTR 2.6mmTR 3mmTY 3mm
StatusTRTRTY
PackagingSpooler coilsOrbital coilsSpooler coilsOrbital coilsOrbital coils
Packaging specifications1000*1000*700Φ1100*17501000*1000*700Φ1100*1750Φ1100*1750
Unit weight≤2t≤1.8t≤2t≤1.8t≤1.8t
Standard productTolerance±0.026mm±0.03mm±0.03mm
Roundness0.026 mm0.03 mm0.03 mm
Tensile strength--> 389N/mm2
Elongation> 30%> 30%≥1%
Resistivity≤ 0.017241≤ 0.017241≤ 0.01777
Surface qualitySmooth without burrSmooth without burrSmooth without burr

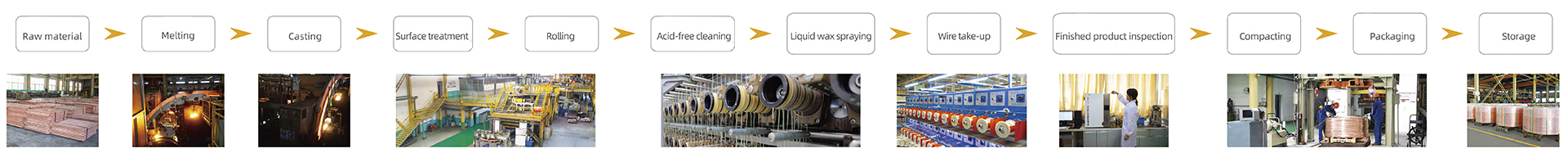

Bare Copper Wire for Electrical Purpose Production Process

The conventional production process:

Bare Copper Wire for Electrical Purpose Production Process
  • 01
    Raw material
  • 02
    Melting
  • 03
    Casting
  • 04
    Surface treatment
  • 05
    Rolling
  • 06
    Acid-free cleaning
  • 07
    Liquid wax spraying
  • 08
    Wire take-up
  • 09
    Finshed prduct insepection
  • 10
    Compacting
  • 11
    Packaging
  • 12
    Storage

Bare Copper Wire for Electrical Purpose Production Equipments

  • American Southwire SCR Continuous Casting and Rolling Production Line
    American Southwire SCR Continuous Casting and Rolling Production Line

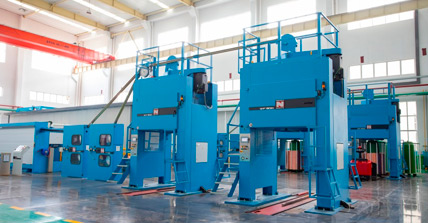

  • German Niehoff Drawing Lines
    German Niehoff Drawing Lines

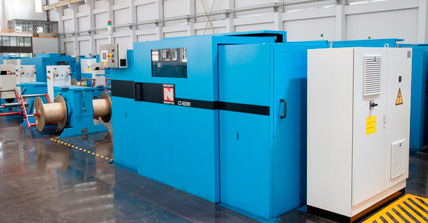

  • Niehoff Stranding Machine
    Niehoff Stranding Machine
