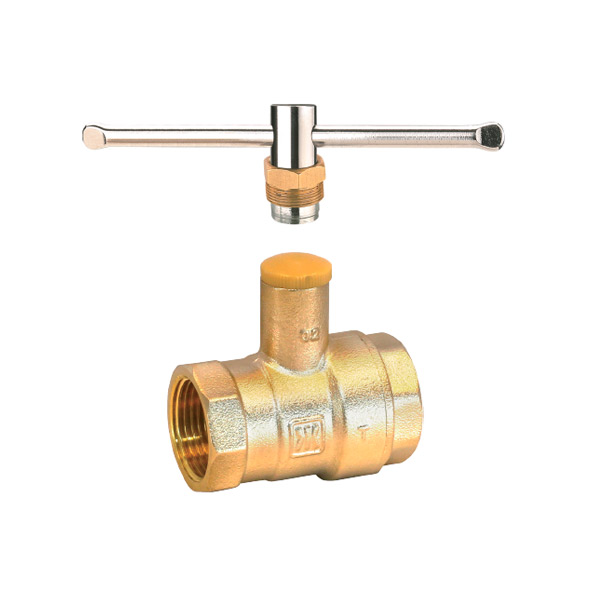

Brass Lockable Ball Valve JKL-279
Lock type ball valve, high safety factor, free key, convenient for unified control. The key is under unified control to prevent users from opening and closing without authorization, which improves safety.
Jintian stands out as one of the professional brass valve manufacturers, providing high-quality solutions for your diverse needs.
Brass Lockable Ball Valve JKL-279 Performance Advantages
Fast Material Supply. Have own copper bar Factory of Group
100% Leakage Test
Guaranteed Quality In Competitive Price
Complete R&D facilities and Excellent team
Strictly and perfect management in production
Have rich experience and strong ability to develop new products
Application Fields
-
heating-ventilation-and-air-conditioning -
city-gas-industry -
urban-water-supply-and-drainage -
mechanical-equipment
Brass Lockable Ball Valve JKL-279 Performance Parameter
| Body | CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR, as per request |
| Norminal Diameter | 1/2"~2", DN15-DN50, can be customized |
| Norminal Pressure | 2.5Mpa |
| Working Medium | Water, Non-causticity liquid, Saturated steam |
| Working Temperature | -20°C≤T≤99°C |
| Handle | Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type |
| Thread | ISO228/1, BSP, BSPT, NPT, ANSI BI 20.1 or as per request |
| Standard | AS4617, AS5200-012 |
Production Process
Brass Ball Valve FAQ
-
What is a Brass Ball Valve?
Brass Ball valve is a valve that uses a ball with a circular channel as the opening and closing part, and the ball rotates with the valve stem to realize the opening and closing action. The opening and closing part of the ball valve is a sphere with holes, which rotates around the axis perpendicular to the channel, so as to achieve the purpose of opening and closing the channel.
-
How many types of Brass Ball Valves are there?
According to different threads, handles and materials, there are many styles of ball valves. We can even customize them according to your requirements
-
Can I have a sample order for braass ball valve?
Definitely yes. We welcome sample order to test and check quality. Mixed samples are acceptable.
Brass Lockable Ball Valve JKL-279 Executive Standard
Product performance standards: GB/T 17791-2007, ASTM B280, JIS H3300, AS/NZS 1571:1995, AS 1432, EN12735-2
