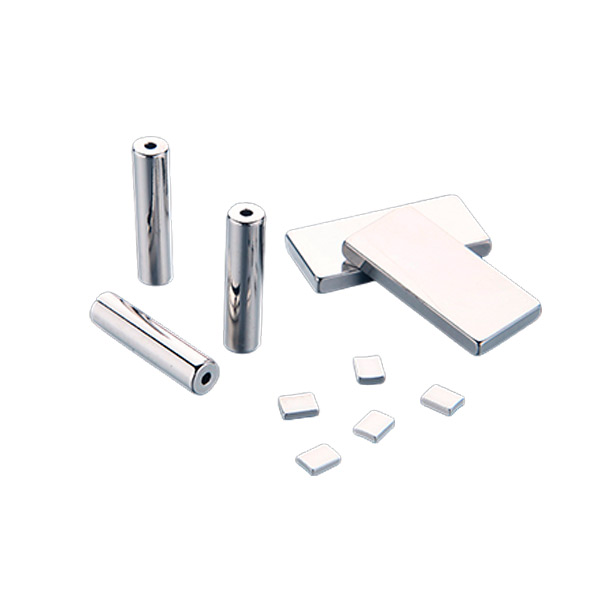

High Grade Magnet (SH/UH/EH/AH Series)

Jintian Magnet's high-grade magnet series have excellent high temperature characteristics and are in the leading position in the industry in terms of consistency and stability. There are a wide range of customer bases and application cases in the fields of automobiles, industrial motors, compressors, generators, etc.

High Grade Magnet (SH/UH/EH/AH Series) Certifications
  • ISO9001
  • ISO14001
  • OSHMS
  • IATF16949

High Grade Magnet (SH/UH/EH/AH Series) Performance Advantages


  • High stability

  • Good overall performance

High Grade Magnet (SH/UH/EH/AH Series) Application Fields

  • Industrial Motor

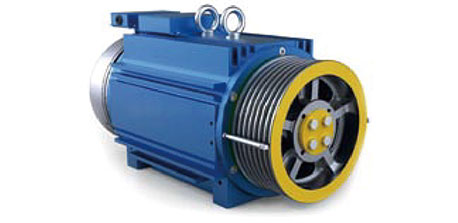

    Industrial Motor
  • Air-conditioning Compressor

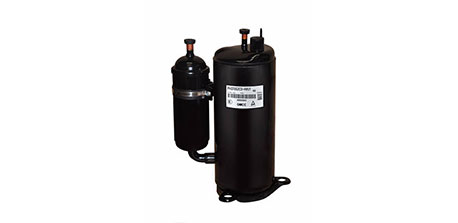

    Air-conditioning Compressor
  • EPS

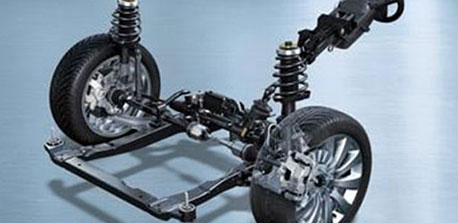

    EPS

High Grade Magnet (SH/UH/EH/AH Series) Performance Parameter

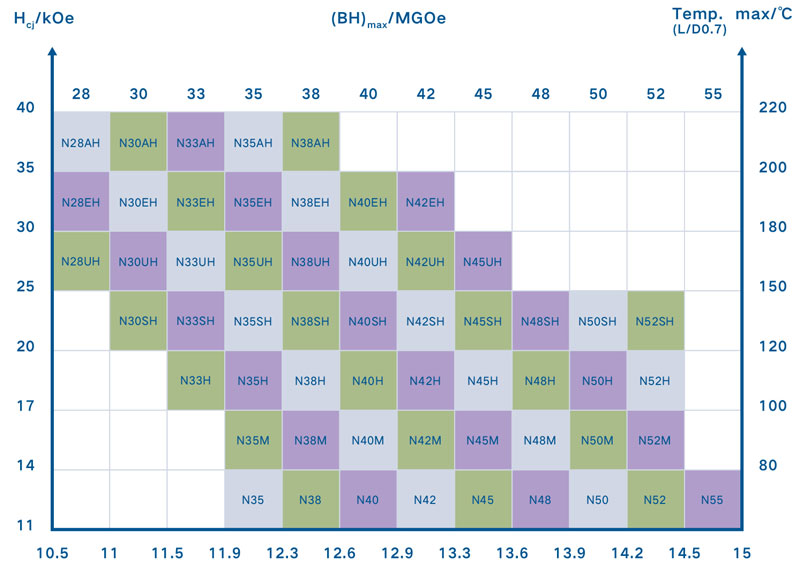

High grade magnet steel (SH / UH / EH / AH series) Performance Parameter



NoGradeMagnetic properties of SH-series Magnet
Max Working Temp Tw(℃)
Remanence,Br mT or kGsCoercivity, Hcb kA/m or kOeIntrinsic Coercivity, Hcj kA/m or kOeMaximium Energy Product,(BH)max kJ/m³ or kOe
1N52SH1430-1450(14.3-14.5)≥1592(≥20)406-430(51-54)150
2N50SH1400-1450(14.0-14.5)≥1035(≥13.0)≥1592(≥20)382-406(48-51)150
3N48SH1370-1430(13.7-14.3)≥1003(≥12.6)≥1592(≥20)366-390(46-49)150
4N45SH1330-1370(13.3-13.7)≥995(≥12.5)≥1592(≥20)342-366(43-46)150
5N42SH1280-1340(12.8-13.4)≥963(≥12.1)≥1592(≥20)318-342(40-43)150
6N40SH1260-1310(12.6-13.1)≥947(≥11.9)≥1592(≥20)302-326(38-41)150
7N38SH1220-1290(12.2-12.9)≥931(≥11.7)≥1592(≥20)287-310(36-39)150
8N35SH1170-1240(11.7-12.4)≥875(≥11.0)≥1592(≥20)263-287(33-36)150
9N33SH
1130-1170(11.3-11.7)≥844(≥10.6)≥1592(≥20)247-271(31-34)150
10N30SH1080-1130(10.8-11.3)≥804(≥10.1)≥1592(≥20)223-247(28-31)150


NoGradeMagnetic properties of UH-series MagnetMax Working Temp Tw(℃)
Remanence,Br mT or kGsCoercivity, Hcb kA/m or kOeIntrinsic Coercivity, Hcj kA/m or kOeMaximium Energy Product,(BH)max kJ/m³ or kOe
1N45UH1310-1360(13.1-13.6)≥971(≥12.2)≥1990(≥25)342-366(43-46)180
2N42UH1280-1340(12.8-13.4)≥955(≥12.0)≥1990(≥25)318-342(40-43)180
3N40UH1260-1310(12.6-13.1)≥939(≥11.8)≥1990(≥25)302-326(38-41)180
4N38UH1220-1290(12.2-12.9)≥915(≥11.5)≥1990(≥25)287-310(36-39)180
5N35UH1170-1240(11.7-12.4)≥875(≥11.0)≥1990(≥25)263-287(33-36)180
6N33UH1140-1210(11.4-12.1)≥844(≥10.6)≥1990(≥25)247-271(31-34)180
7N30UH1080-1130(10.8-11.3)≥835(≥10.5)≥1990(≥25)223-247(28-31)180
8N28UH1050-1080(10.5-10.8)≥764(≥9.6)≥1990(≥25)207-239(26-30)180


NoGradeMagnetic properties of EH-series MagnetMax Working Temp Tw(℃)
Remanence,Br mT or kGsCoercivity, Hcb kA/m or kOeIntrinsic Coercivity, Hcj kA/m or kOeMaximium Energy Product,(BH)max kJ/m³ or kOe
1N42EH1280-1320(12.8-13.2)≥955(≥12.0)≥2388(≥30)318-342(40-43)200
2N40EH1240-1310(12.4-13.1)≥939(≥11.8)≥2388(≥30)302-326(38-41)200
3N38EH1220-1270(12.2-12.7)≥915(≥11.5)≥2388(≥30)287-310(36-39)200
4N35EH1170-1240(11.7-12.4)≥876(≥11.0)≥2388(≥30)263-287(33-36)200
5N33EH1140-1210(11.4-12.1)≥859(≥10.8)≥2388(≥30)247-271(31-34)200
6N30EH1080-1150(10.8-11.5)≥812(≥10.2)≥2388(≥30)223-247(28-31)200
7N28EH1040-1090(10.4-10.9)≥780(≥9.8)≥2388(≥30)207-231(26-29)200


NoGradeMagnetic properties of AH-series MagnetMax Working Temp Tw(℃)
Remanence, Br mT or kGsCoercivity, Hcb kA/m or kOeIntrinsic Coercivity, Hcj kA/m or kOeMaximium Energy Product,(BH)max kJ/m³ or kOe
1N38AH1220-1250(12.2-12.5)≥907(≥11.4)≥2786(≥35)287-310(36-39)240
2N35AH1160-1230(11.6-12.3)≥867(≥10.9)≥2786(≥35)263-287(33-36)240
3N33AH1140-1210(11.4-12.1)≥851(≥10.7)≥2786(≥35)247-271(31-34)240
4N30AH1080-1150(10.8-11.5)≥812(≥10.2)≥2786(≥35)223-247(28-31)240


Coating TypeColorThickness/umSST/hPCT/hWorking Temp/℃Performance features
Blue ZnBlue/White5-10≥48<160Medium corrosion resistance performance
Color ZnMultiple colors5-10≥72<160Medium corrosion resistance performance
NICUNISilver white10-30≥72≥96<200High corrosion resistance,thermal resistance and moisture resistance
PVD AluminiumSilver white5-25≥96≥240<390High corrosion resistance and adhesiveness
Phosphate<250Low cost,low corrosion resistance performance
EpoxyBlack/Grey10-30≥480≥96<180High corrosion resistance and insulation performance
Multi-layer coating≥1000≥480Excellent corrosion resistance performance

Notes

  • This performance might vary according to different dimension of product.

  • Multi-layer coating is a combination of different type of coatings, and its color,thickness and working temperature might varies from different combinations.

  • PCT test conditions: 121 celcius degrees, 100% humidity,2atms HAST test condition:132 celcius dergees, 95% humidity,2.7atms(mainly for evaluation of material weight loss)

  • HAST (Highly Accelerated Stress Test) condition: 132 celcius degrees, 95% humidity,2.7atms(mainly for evaluation of material weight loss)

High Grade Magnet (SH/UH/EH/AH Series) Production Process

The production process of NdFeB:

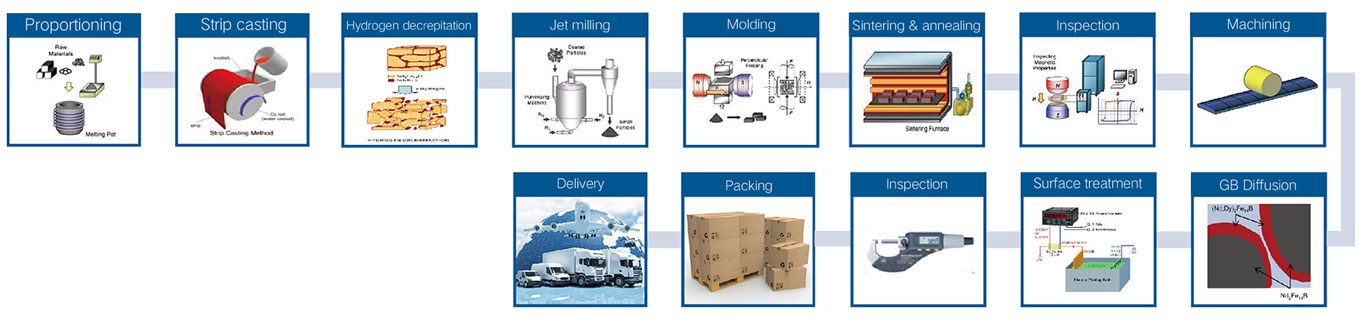

High Grade Magnet (SH/UH/EH/AH Series) Production Process
  • 01
    Proportioning
  • 02
    Strip casting
  • 03
    Hydrogen decrepitation
  • 04
    Jet milling
  • 05
    Molding
  • 06
    Inspection
  • 07
    Machining
  • 08
    GB diffusion
  • 09
    Surface treatment
  • 10
    Inspection
  • 11
    Packaging
  • 12
    Delivery

High Grade Magnet (SH/UH/EH/AH Series) Executive Standard


ISO9001, ISO14001, IATF16949, ISO45001

High Grade Magnet (SH/UH/EH/AH Series) Production Equipments

  • Automatic Spraying Coating Line
    Automatic Spraying Coating Line
  • Jet Milling
    Jet Milling
  • Multiple Wire Cutting
    Multiple Wire Cutting
  • Hydrogen Decrepitation Furnace
    Hydrogen Decrepitation Furnace
  • Continuous Sintering Stove
    Continuous Sintering Stove
  • Strip Casting Furnace
    Strip Casting Furnace
  • Amt-4a Magnetic Property Measurement Equipment
    Amt-4a Magnetic Property Measurement Equipment
  • Ehs-222md Hast (Japan)
    Ehs-222md Hast (Japan)
  • HELOS-BFS LASER Particle Size Measurement Equipment (Germany)
    HELOS-BFS LASER Particle Size Measurement Equipment (Germany)
  • HIRST-PFM12 Pulse Magnetic Measurement Equipment (UK)
    HIRST-PFM12 Pulse Magnetic Measurement Equipment (UK)
  • PSL-2J High-Low Temperature Environment Testing Equpment (Japan)
    PSL-2J High-Low Temperature Environment Testing Equpment (Japan)
  • SP3020 Automatic Image Measuring Apparatus
    SP3020 Automatic Image Measuring Apparatus
  • Uitima Expert Plasma Spectrometer (France)
    Uitima Expert Plasma Spectrometer (France)
