Bronze

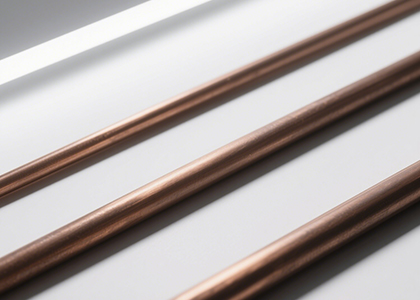

C5102 Bronze

Bronze

Grade Name

C5102 Phosphor Bronze (Tin-Phosphorus Bronze)


Key Features

  • High Elasticity & Wear Resistance: Tin (4.5–6.0%) and phosphorus (0.03–0.35%) enhance fatigue resistance.

  • Corrosion Resistance: Suitable for weak acidic and humid environments.

  • Machinability: Cold-working compatible with stamping and bending.

  • Eco-Compliance: RoHS-compliant (Pb ≤0.05%).


Product Forms & Dimensions

Form

Size Range

Standards

Strip

Thickness 0.1–2.0mm, Width 10–600mm

JIS H 3110-2018

Plate

Thickness 0.5–50mm, Width 100–2000mm

ASTM B103-19

Wire

Diameter 0.2–12mm, Coil ≥3kg

JIS H 3270-2018

Rod

Diameter 3–150mm, Length 1–6m

EN 1654:1997

Tube

OD 5–100mm, Wall Thickness 0.5–10mm

DIN 17660


Chemical Composition

Element

Content (%)

Standard Range

Cu

Balance

Main Component (JIS H 3110)

Sn

4.5–6.0

Enhances Elasticity

P

0.03–0.35

Improves Wear Resistance

Pb

≤0.05

RoHS Limit

Fe

≤0.10

Impurity Control

Zn

≤0.30

Impurity Control


Physical Properties

Property

Value/Description

Density

8.86 g/cm³

Electrical Conductivity

14% IACS (20℃)

Thermal Conductivity

70 W/(m·K)

Thermal Expansion

18.5×10⁻⁶/℃ (20–200℃)


Mechanical Properties

Condition

Tensile Strength (MPa)

Elongation (%)

Hardness (HV)

Annealed (O)

400–500

≥25

90–120 HV

1/4 Hard (H01)

600–750

≥12

160–200 HV

Hard (H04)

≥750

≥5

≥220 HV


Core Advantages

1. Fatigue Resistance: Ideal for high-cycle fatigue applications (e.g., springs).

2. Surface Versatility: Compatible with tin/nickel plating for enhanced durability.

3. Cost Efficiency: Direct cold-forming reduces post-processing steps.


Applications

  • Electronics: High-frequency connectors, relay springs.

  • Machinery: Heavy-duty springs, bearing cages.

  • Automotive: Sensor springs, fuel injector components.

  • Instrumentation: Precision elastic components.


Processing Guidelines

  • Cold Working: Limit deformation to ≤40% to prevent cracking.

  • Annealing: 650–750℃ to restore ductility and relieve stress.

  • Surface Treatment: Acid cleaning before plating for adhesion.


FAQs

Q1: Differences between C5102 and C5111?

A: C5102 has higher tin (4.5–6.0% vs. 3.5–4.5%) for higher elasticity and load capacity.


Q2: Suitability for high-temperature use?

A: Not recommended for >120℃; consider C5210 for elevated temperatures.


Standards

  • JIS H 3110-2018: Phosphor bronze sheets, strips, and foils.

  • ASTM B103-19: Phosphor bronze plate and strip standards.

  • EN 1654:1997: European copper alloy strip standards.
