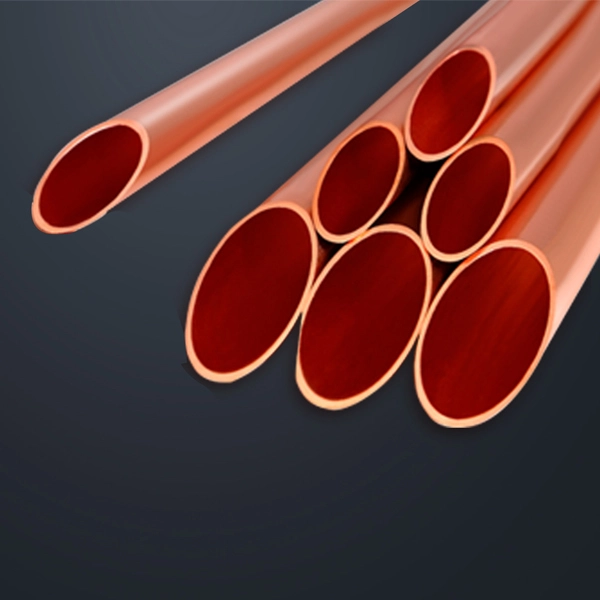

High Strength Alloy Tube C1940

C1940 copper pipe is a copper alloy pipe based on pure copper and composed of Fe, P, Zn and other elements, which has the characteristics of high strength, corrosion resistance, excellent thermal conductivity and high fatigue resistance, and can have good ductility under the condition of high strength and yield strength.

Products

High Strength Alloy Tube Certifications

The high strength copper alloy tubing has passed the ISO9001, 14001, 45001 system certification, as well as the American standard ASTM B 280, the Japanese standard JIS H 3300, the Australian standard AS 1571 and the European Union PED 4.3 and other product certifications.

High Strength Alloy Tube Performance Advantages

High strength: C1940 copper tube has high tensile strength and yield strength, which is suitable for manufacturing parts that require pressure resistance and deformation resistance;
Cost-effective: C1940 copper tube is cost-effective, easy to process and connect, can save materials and total costs, compared with the conventional TP2 material copper tube wall thickness reduction of more than 40%;
Good plasticity: C1940 copper pipe has good cold working performance, easy to bend and process, and is suitable for CO2 refrigerant air conditioning pipelines.

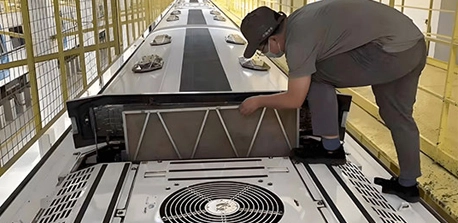

Application Fields

high-strength-alloy-tube-application-fields-01
jumbo-coil-application-fields-02_1732087906

High Strength Alloy Tube Performance Parameter

State	Hard	Tensile strength	Elongation	Yield strength
R300	80~110	≥300	≥25	≤250
R370	110-140	≥370	≥15	≥250
R420	≥135	≥420	≥5	≥320

Production Process

01

Electrolytic copper


02

Semi-continuous casting


03

extrusion


04

Cold rolling


05

Pulled



06

anneal


07

wrap



FAQs of Copper Tube Wholesale



What is Copper Tube used for?


Copper tube is a type of pipe made from copper that is used in a wide range of applications. Copper tubing is known for its excellent thermal conductivity, corrosion resistance, and durability, which make it a popular choice for a variety of industries.
Some common uses of copper tube include:

Plumbing
Copper is used for plumbing tubes principally because of its corrosion resistance, machinability and high level of heat transfer. Copper tubing is often used in residential and commercial plumbing systems for carrying hot and cold water, as well as gas lines.

HVAC systems
Inner grooved copper tube and other kind of copper tubing are commonly used in air conditioning and refrigeration systems for its superior heat transfer properties.

Electrical wiring
Copper tubing is sometimes used in electrical wiring for its excellent conductivity properties.

Industrial applications
Copper pipe for sale is applied to a variety of industrial applications, such as in the production of heat exchangers, boilers, and other equipment that requires a high level of thermal conductivity and corrosion resistance.

Transportation
Copper Tube applications for copper in the transportation industry are automotive and truck radiators, air-conditioning systems and hydraulic lines.


What is the Difference Between Copper Pipe and Copper Tubing


Copper pipe is typically used for plumbing and water distribution systems. It has a thicker wall and is available in various lengths and diameters. Copper pipes are usually sold in straight lengths and may have threaded ends or be connected using soldering or compression fittings.

Copper tube wholesale is often used for refrigerant lines in HVAC systems. Many types of copper tube have a thinner wall and is available in longer lengths than copper pipe. Copper tubing is commonly sold in coils, which makes it easier to handle and bend without the need for additional fittings.

Overall, copper pipe and copper tubing are both made of copper and can be used for similar applications, but their differences in wall thickness, length, and availability of fittings make them better suited for specific purposes.
