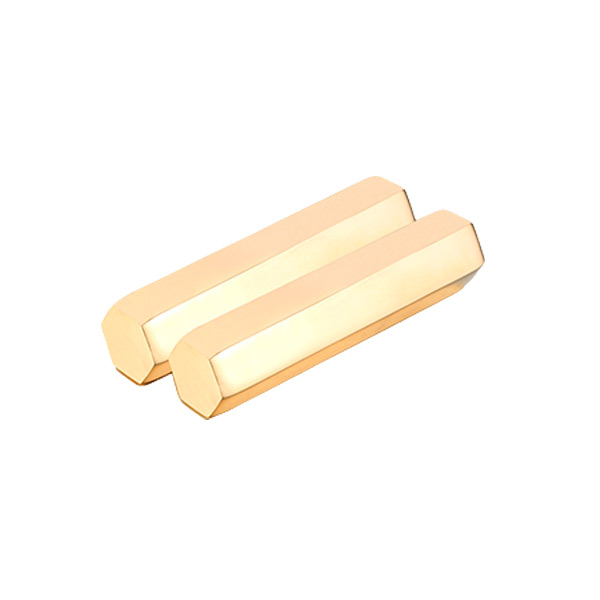

Tin Zinc Lead Bronze Rod

The tin-zinc-lead bronze produced by our company can be used in pipelines, valve fittings, seawater-resistant parts, manufacturing sleeves, bearing pads, piston clutches. Tin-zinc-lead bronze is also known as automobile bronze, suitable for gravity casting, numerical control Lathes are processed with pipe fittings, chemical machinery, and wear-resistant parts for the automotive, tractor, aviation, and machinery industries that require wear, corrosion, and elasticity.

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)

Tin Zinc Lead Bronze Rod Certifications

Tin Zinc Lead Bronze Rod Performance Advantages

Good mechanical properties
Excellent wear resistance
Excellent machining performance
Excellent corrosion resistance
Excellent casting performance

Tin Zinc Lead Bronze Rod Application Fields

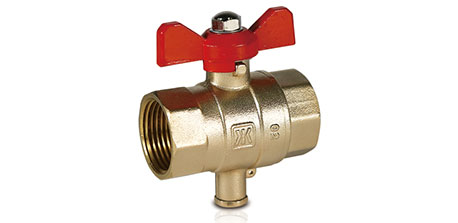

6-258 Temperature Measuring Ball Valve

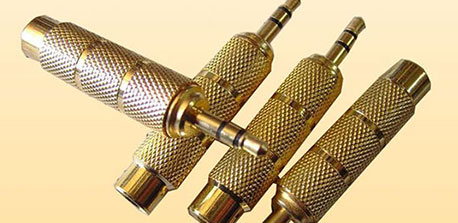

Connector

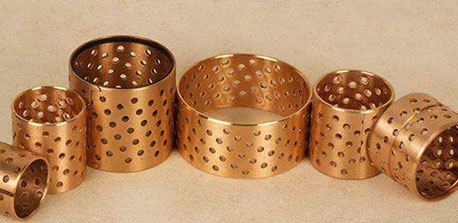

Bronze Bearings

Tin Zinc Lead Bronze Rod Performance Parameter

Alloy grade	Chemistry componet%
Alloy grade	Cu	Pb	Sn	Zn	Fe	Ni	Al	Si	Sb	P	S
ZCuSn5Zn5Pb5 (C83600)	84.0~86.0	4.0~6.0	4.0~6.0	4.0~6.0	≤0.30	≤1.0	≤0.005	≤0.005	≤0.25	≤0.05	≤0.08
C84400	78.0~82.0	6.0~8.0	2.5~3.5	7.0~10.0	≤0.40	≤1.0	≤0.005	≤0.005	≤0.25	≤0.02	≤0.08
ZCuSn6Zn6Pb3	allowance	2.0~4.0	5.0~7.0	5.0~7.0	≤0.40	≤1.0	≤0.05	≤0.05	≤0.30	≤0.05	≤0.08
ZCuSn5Zn5Pb2 (CC499K)	84.0~88.0	0.2~3.0	4.0~6.0	4.0~6.0	≤0.30	0.1~0.6	≤0.01	≤0.01	≤0.10	≤0.04	≤0.40
ZQSn7Pb7Zn3 (C93200)	81.0~85.0	6.0~8.0	6.3~7.5	2.0~4.0	≤0.20	≤1.0	≤0.005	≤0.005	≤0.35	≤0.15	≤0.08
