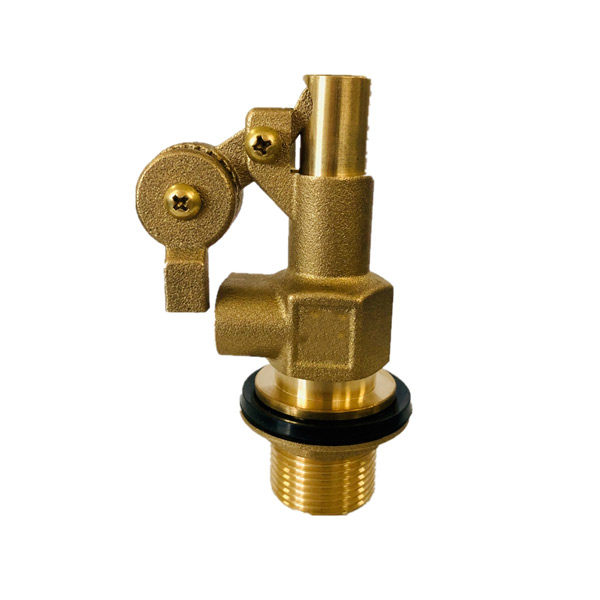

Brass Float Ball Valve JKL-5906

The most popular style of float valve in South America can be customized according to requirements. The ball and various parts can be customized according to the needs of customers. Jintian as one of the professional brass float valve manufacturers, specializes in providing high-quality products to meet your specific needs.

Products

Certifications

Brass Float Ball Valve JKL-5906 Advantages

Fast Material Supply. Have own copper bar Factory of Group
100% Leakage Test
Guaranteed Quality In Competitive Price
Complete R&D facilities and Excellent team
Strictly and perfect management in production
Have rich experience and strong ability to develop new products

Application Fields

heating-ventilation-and-air-conditioning
city-gas-industry
urban-water-supply-and-drainage
mechanical-equipment

Brass Float Ball Valve JKL-5906 Performance Parameter

Body	CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR, as per request
Norminal Diameter	1/2"~2", DN15-DN50, can be customized
Norminal Pressure	2.5Mpa
Working Medium	Water, Non-causticity liquid, Saturated steam
Working Temperature	-20°C≤T≤99°C
Handle	Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type
Thread	ISO228/1, BSP, BSPT, NPT, ANSI BI 20.1 or as per request
Standard	AS4617, AS5200-012

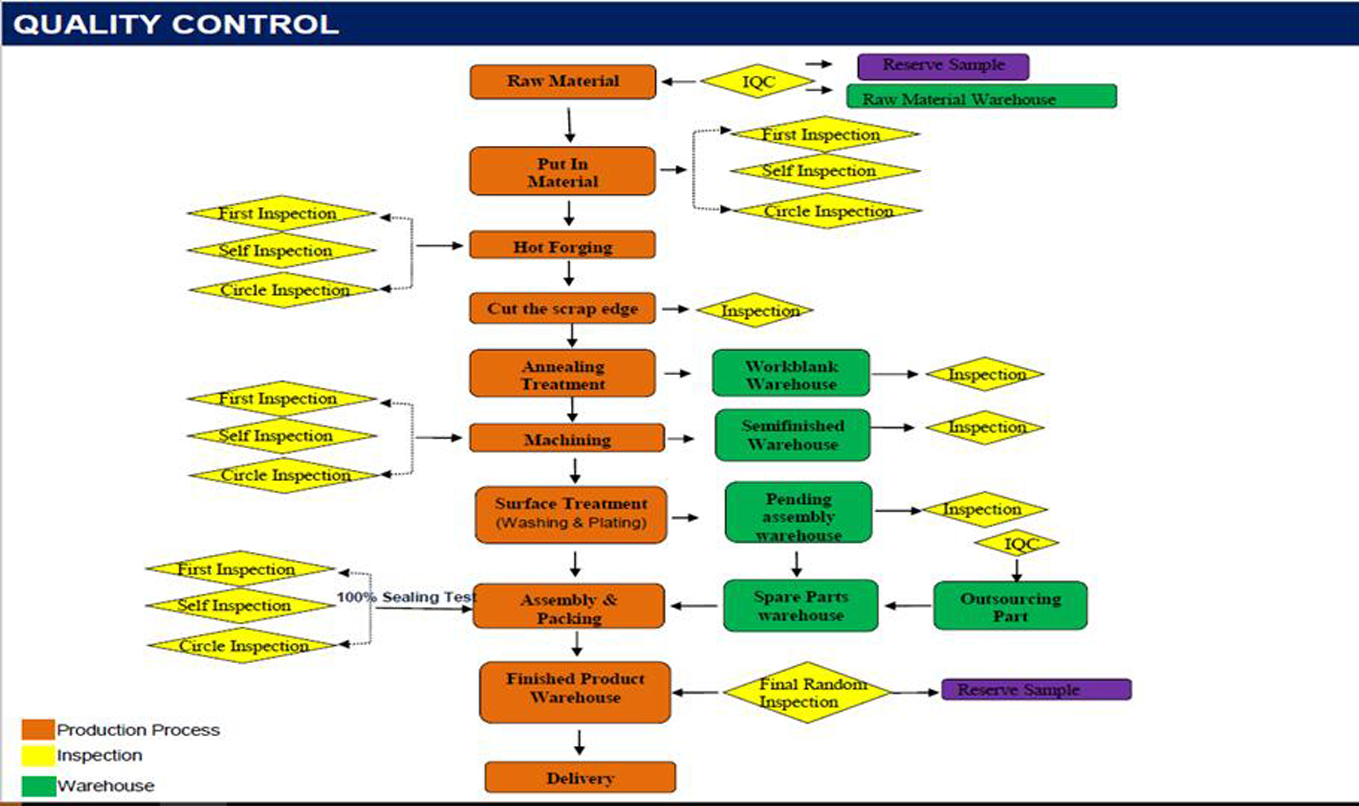

Production Process

Brass Float Ball Valve FAQ



What are brass ball valves used for?


Brass float valve with ball are used to control the flow of various types of fluids, such as water, oil, gas, and other chemicals. They are commonly used in plumbing, heating, and cooling systems, as well as in industrial applications.

Some common applications of brass float ball valve include:

Domestic and commercial water supply systems: Brass ball valves are widely used in water supply systems for controlling the flow of water in pipes, pumps, tanks, and other equipment. They are popular in plumbing systems because they are durable, easy to use, and resistant to corrosion.

HVAC systems: Brass ball valves are also used in heating, ventilation, and air conditioning (HVAC) systems for controlling the flow of hot or cold water, glycol, and other fluids.


What is the working principle of float valve?


The float always floats on the water. When the water surface rises, the float also rises. When the drift rises, the connecting rod also rises. The connecting rod is connected with the valve at the other end. When it rises to a certain position, the connecting rod supports the rubber piston pad to close the water source. When the water level drops, the float also drops, and the connecting rod drives the piston pad to open.


Which float valve is best?


Different types are suitable for different occasions. You can tell us the specific requirements, and we will recommend the most suitable type for you at the first time.
