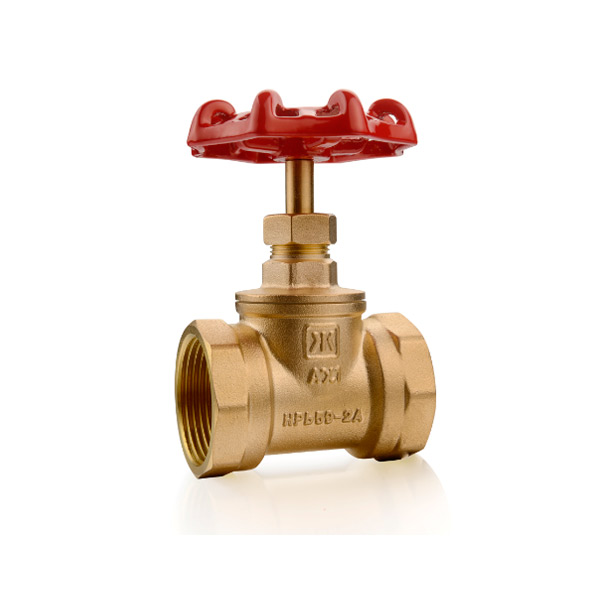

Brass Stop Valve JKL-317

The most popular stop ball valve in China can be delivered at any time with inventory, and samples can be sent free of charge. Contact us for brass stop valve price list now!

Products

Certifications

Brass Stop Valve JKL-317 Performance Advantages

Fast Material Supply. Have own copper bar Factory of Group
100% Leakage Test
Guaranteed Quality In Competitive Price
Complete R&D facilities and Excellent team
Strictly and perfect management in production
Have rich experience and strong ability to develop new products

Application Fields

heating-ventilation-and-air-conditioning
city-gas-industry
urban-water-supply-and-drainage
mechanical-equipment

Brass Stop Valve JKL-317 Performance Parameter

Body	CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR, as per request
Norminal Diameter	1/2"~2", DN15-DN50, can be customized
Norminal Pressure	2.5Mpa
Working Medium	Water, Non-causticity liquid, Saturated steam
Working Temperature	-20°C≤T≤99°C
Handle	Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type
Thread	ISO228/1, BSP, BSPT, NPT, ANSI BI 20.1 or as per request
Standard	AS4617, AS5200-012

Production Process

Brass Stop Valve FAQ



What is a Brass Stop Valve?


Stop valve ( globe valve), also known as stop valve, belongs to forced sealing valve and is one of the most widely used valves. The stop valve relies on the pressure of the valve rod to make the sealing surface of the valve disc closely fit the sealing surface of the valve seat and prevent the flow of medium, because only one-way flow of medium is allowed.


Types of Brass Stop Valves and How They Are Used?


The opening or closing stroke of the valve rod of the stop valve is relatively short, and has a reliable cutting function. At the same time, the change of the valve seat opening is in direct proportion to the stroke of the valve disc, which is suitable for the regulation of flow. Therefore, this type of valve is very suitable for cut-off or regulation and throttling.


Difference between gate valve and stop valve?


Fluid closing is the main goal of gate valve, and flow throttling is the main goal of stop valve.
The fluid regulation capacity of the gate valve is poor and there is no Gate valves do not create a pressure drop in the pipeline, as do globe valves Stop valves open faster than gate valves.
