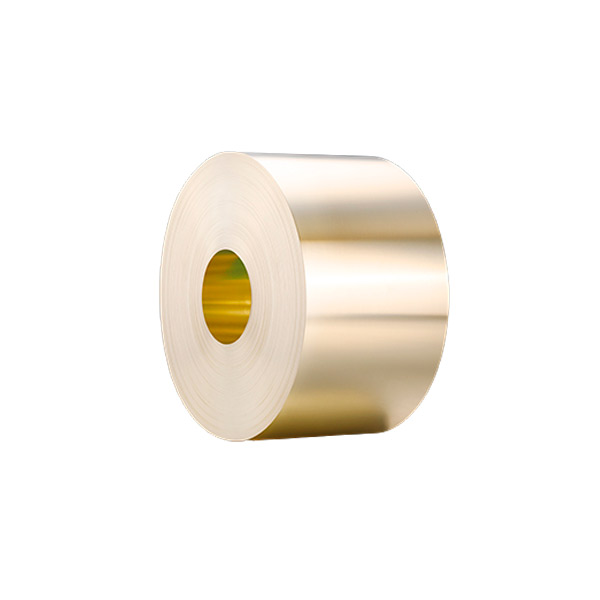

Nickel Silver Strip

The high-precision zinc white copper strip produced by our company can be used in mobile phone shielding shells, electronic and electrical plug-ins, crystal oscillators, transistor caps, optical instruments, etched substrates, wind instruments, medical instruments, spring clips, esistors, car keys and other fields .

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
  -  Jumbo Coil
  -  Plastic-Coated Copper Tubes
  -  Capillary Copper Tube
  -  Oxygen-Free Copper Tube
  -  High Strength Alloy Tube
  -  High Strength Copper Pipe
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)
Copper Wire Size 
- 3mm Wire
- 8mm Wire

Nickel Silver Strip Certifications

Nickel Silver Strip Video

Nickel Silver Strip Performance Advantages

Good gloss
Excellent cold workability and ductility
Corrosion resistance, fatigue resistance
Good formability and solderability
Better electrical performance
Better mechanical properties
Radiation shielding performance

Nickel Silver Strip Application Fields

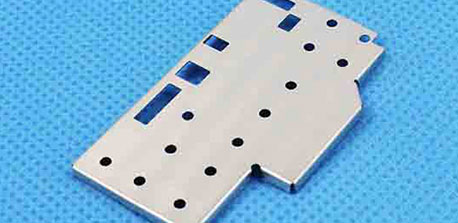

Mobile Phone Shield

The excellent electrical conductivity and magnetic properties of nickel silver make it an ideal material for mobile phone shields. This silver metal strip is typically used to create a conductive enclosure around critical components such as circuit boards, chips, and antennas. This helps to prevent interference from external sources and ensures proper functioning of the mobile phone's communication systems.

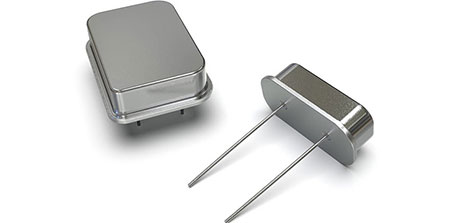

Crystal Oscillator

Nickel silver coil strips are often used as the mounting or packaging material for crystal oscillators. The strips, like c7521 nickel silver strip provide mechanical support and protect the delicate crystal resonator inside the oscillator from external environmental factors. Additionally, the high electrical conductivity of nickel silver ensures proper signal transmission and minimizes signal loss, which is crucial for accurate timing and frequency control. Beyond high-quality nickel silver strips, Jintian offers a comprehensive selection including thin copper strips, leadframe strip, and more, to perfectly match your specific project requirements.

Mobile Phone Shield
Crystal Oscillator

Nickel Silver Strip Performance Parameter

Alloy Grade	Standard	Chemistry Composition%							Size Available
Alloy Grade	Standard	Cu	Pb	Fe	Zn	Ni+Co	Mn	Others	Thinckness	Width
BZn18-18	GB	63.0-66.5	≤0.05	≤0.25	Remains	16.5-19.5	≤0.50	≤0.4	0.15-3.00mm	20-400mm
BZn12-26		60.0-63.0	≤0.03	≤0.30	Remains	10.5-13.0	≤0.50	≤0.85
BZn15-20		62.0-65.0	≤0.02	≤0.50	Remains	13.5-16.5	≤0.30	≤0.95
BZn10-1		61.0-63.0	0.9-1.1	≤0.35	Remains	11.0-13.0	≤0.50	-
BZn8-1		63.0-65.0	0.9-1.1	≤0.35	Remains	7.5-9.0	≤0.50	Cu+Sn+P≥99.5
C7701	JIS	54.0-58.0	≤0.03	≤0.25	Remains	16.5-19.5	≤0.50	Cu+Sn+P≥99.5
C7521		62.0-66.0	≤0.03	≤0.25	Remains	16.5-19.5	≤0.50	Cu+Sn+P≥99.5
C7351		70.0-75.0	≤0.03	≤0.25	Remains	16.5-19.5	≤0.50	-

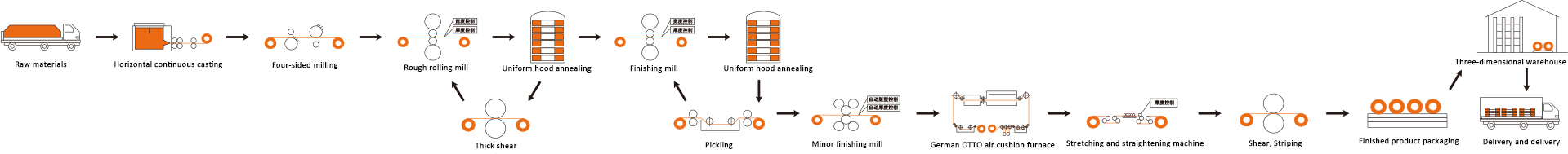

Nickel Silver Strip Production Process

The production process of copper strip is as follows:

01

Raw materials


02

Horizontal continuous casting


03

Four-sided milling


04

Rough rolling mill


05

Thick shear



06

Uniform hood annealing


07

Finishing mill


08

Pickling


09

Uniform hood annealing


10

Minor finishing mill



11

German OTTO air cushion furnace


12

Stretching and straightening machine


13

Shear, Striping


14

Finished product packaging


15

Three-dimensional warehouse



Nickel Silver Strip FAQs



Can nickel silver strip be soldered or welded?


Yes, nickel silver roll strip can be soldered. Soldering involves using a compatible solder alloy with a lower melting point than the nickel silver itself. The solder is heated to create a bond between the nickel silver strips and other components.


Can nickel silver strips be formed or shaped easily?


Yes, nickel silver strips are known for their good formability. They can be easily shaped, bent, or formed into various configurations without cracking or losing their structural integrity. This property makes silver plated copper strip suitable for applications that require complex shapes or intricate designs.


Are there different grades or specifications for nickel silver strips?


Yes, nickel silver strips may come in different grades or specifications, depending on the specific requirements of the application. Factors such as composition, thickness, and surface finish can vary based on the intended use. As a reliable copper strip manufacturer, our nickel silver strips are durable and highly efficient, providing an excellent user experience.
