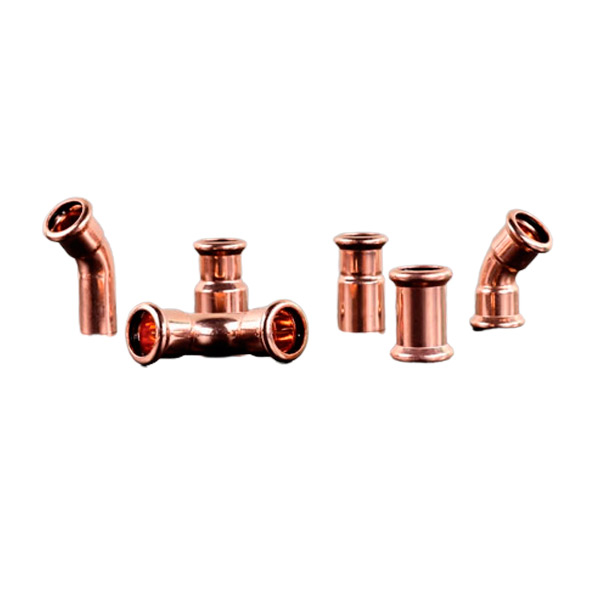

Copper Press Fitting

Copper Press Fitting is a flameless alternative to soldering copper pipe connections. In this system, a hydraulic tool is used to press specially designed connectors to join traditional pipes. These connectors house a sealing element that, when pressed, creates an even and reliable connection. Copper press fittings are compatible with a range of press tools and jaws. Unlike traditional brazing methods, copper press gas fittings involve no heat and no need to weld or solder joints and connections. As one of the most important copper pipe fitting types, copper press plumbing fittings have rapidly become the preferred method for joining copper tubing system in a fast, clean manner. Therefore, as a copper pipe fittings manufacturer, we produce high-quality products. If you are interested in our copper press fittings, you can fill out the form below to contact us.

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
  -  Jumbo Coil
  -  Plastic-Coated Copper Tubes
  -  Capillary Copper Tube
  -  Oxygen-Free Copper Tube
  -  High Strength Alloy Tube
  -  High Strength Copper Pipe
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)
Copper Wire Size 
- 3mm Wire
- 8mm Wire

Copper Press Fitting Certifications

Copper Press Fitting Performance Advantages

Fast to install

Copper press pipe fittings utilize a press-fit connection method, which eliminates the need for complex and time-consuming soldering or welding processes. The copper pipe press fittings can be easily pressed onto copper pipes using specialized pressing tools, reducing installation time significantly.

Safe, strong and reliable

Copper press fittings for gas provide a safe and reliable connection. The press-fit joints create a secure and leak-free seal, ensuring the integrity of the plumbing or heating system.

Heat free jointing

Copper gas press fittings eliminate the need for open flames, torches, or hot work permits, making it a safer installation method. It also reduces the risk of fire hazards and allows for installation in areas where heat-based methods may be restricted.

Certificate approved

Copper press gas fittings often comply with industry standards and regulations, providing assurance of their suitability for use in plumbing, heating, and other applications.

Jintian Copper emerges as a distinguished leader among copper pipe press fittings suppliers in China, embodying a commitment to professionalism and excellence. Renowned for its unwavering dedication to quality, Jintian Copper has positioned itself as a premier choice for those seeking top-tier copper gas press fittings. With a focus on precision engineering, reliability, and adherence to industry standards, Jintian Copper consistently delivers products of exceptional quality. Our extensive range of copper press gas fittings caters to diverse industrial applications, establishing us as a reliable and trusted partner in the Chinese market. If you require copper gas fittings, choose Jintian Copper!

Copper Press Fitting Application Fields

Air Conditioning
Medical
Plumbing
Oil and Gas
Aviation

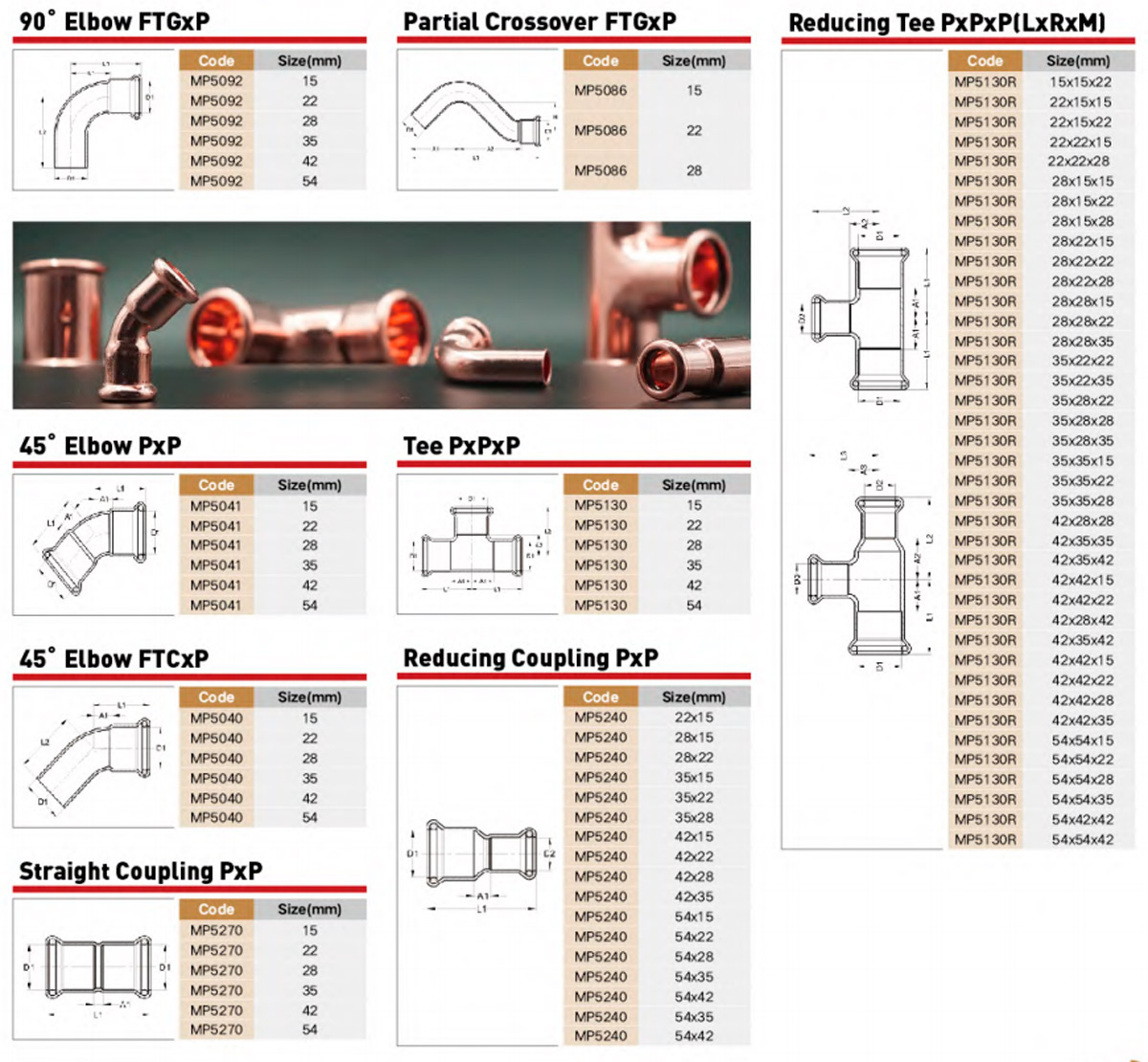

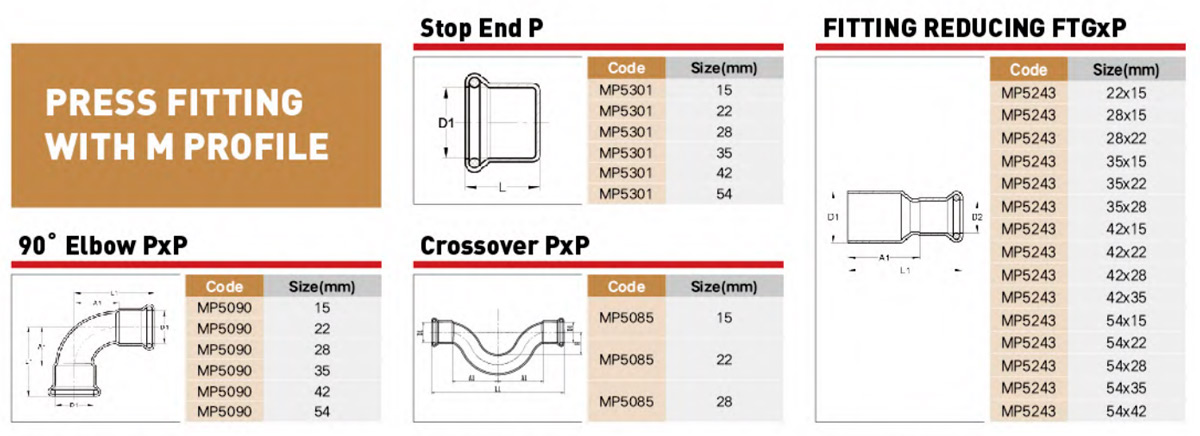

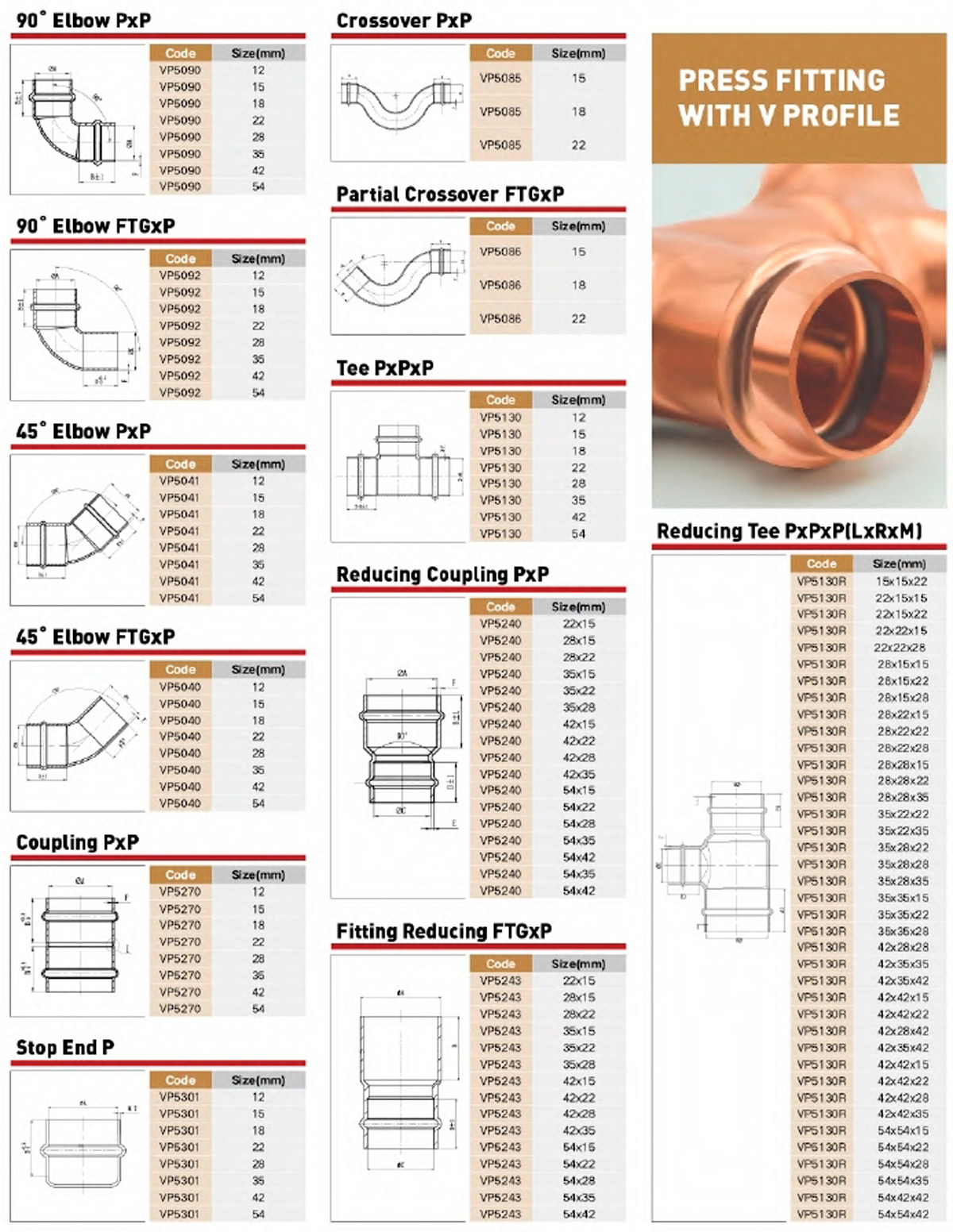

Copper Press Fitting Performance Parameter

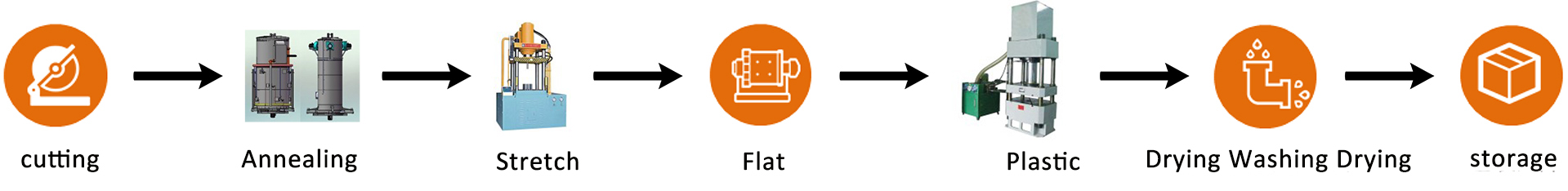

Copper Press Fitting Production Process

The production process of copper pipe fittings is as follows:

01

Cutting


02

Annealing


03

Stretching


04

Flatting


05

Plastic



06

Drying Washing Drying


07

Storage



Copper Press Fittings FAQs



Can copper press fittings be used for both hot and cold water applications?


Yes, copper press water fittings are suitable for both hot and cold water applications. Copper is known for its excellent heat conductivity and resistance to corrosion, making it ideal for a wide range of plumbing systems.


Are there different sizes available for copper press fittings?


Yes, copper press plumbing fittings come in various sizes to accommodate different pipe diameters. Common sizes range from ½ inch to 2 inches, but availability may vary depending on the specific brand and system.


How do you install copper press fittings?


Prepare the Pipe: Cut the copper pipe to the required length using a pipe cutter. Ensure that the ends of the pipe are clean, smooth, and free from burrs or debris. Use a deburring tool or a reaming tool to remove any rough edges.
Prepare the Fitting: Clean the inside of the press fittings for copper using a fitting brush or emery cloth to remove any dirt or oxidation. Make sure the fitting is dry and free from any contaminants.
Mark the Depth: Use a depth gauge tool specific to the press fitting system you are using to mark the insertion depth on the pipe.
Insert the Pipe: Insert the pipe into the copper press gas fittings until it reaches the marked depth. Ensure that the pipe is fully inserted and seated properly within the fitting.
Use the Press Tool: Position the press tool jaws around the fitting and pipe assembly according to the manufacturer's instructions. The press tool is designed to compress the fitting onto the pipe and create a secure connection. Make sure you are using the appropriate press tool and compatible fittings for the specific press system you are working with.
Press the Fitting: Apply steady pressure on the press tool handles to compress the fitting onto the pipe. Follow the manufacturer's guidelines for the appropriate amount of force and duration required for the press. Once the pressing is complete, release the pressure and remove the press tool.
