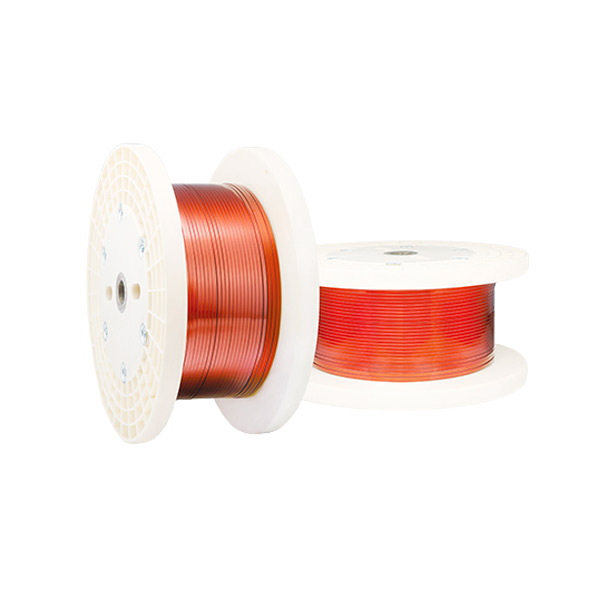

Plate Magnet Wire

The enameled rectangular copper wire produced by our company can be applied to the winding coils of drive motors, transformers, motors, generators and various electrical devices of new energy vehicles.

Plate Magnet Wire Certifications
  • IATF16949
  • RU
  • ROHS
  • DUN
  • ISO9001
  • ISO14001
  • ISO45001

Plate Magnet Wire Performance Advantages


  • Excellent conductivity and thermal stability

  • Scratch resistance

  • Solvent resistance

  • Good resistance to heat dissipation when wound into a wire

  • High magnetic field efficiency

Plate Magnet Wire Application Fields

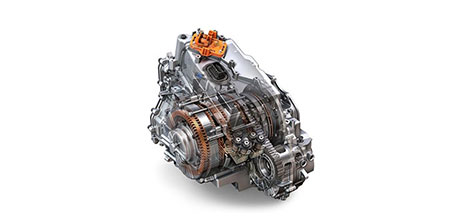

  • New Energy Drive Motor
    New Energy Drive Motor

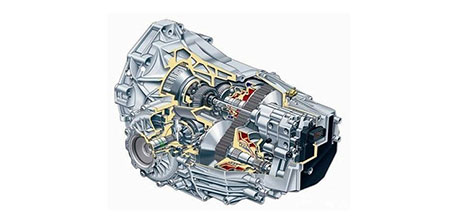

  • Engine
    Engine

Plate Magnet Wire Performance Parameter


Thermal levelModel

Specifications range

Standard

codelevelnamemodelmm²IECGB/TNEMAJIS
B130Class 130 polyester enamelled copper flat wireQZ B-x/1301.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

603177095.7-*
F155Grade 155 polyester enamelled copper flat wireQZ B-x/1551.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-167095.3-*
H180Polyester imide enamelled copper flat wire, class 180QZYB-x/1801.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-287095.4-*
C200/220Grade 200 polyester imide / polyamide imide composite enamelled copper flat wire grade 220 polyamide imide enamelled copper flat wireQ(ZY/XY)


B-x/200QXYB-X/200

1.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-297095.6MW36-C*
C240Class 240 polyimide enamelled copper flat wireQYB-x/2401.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-477095.5MW20-C*

Note: "*" for approximate American wire gage

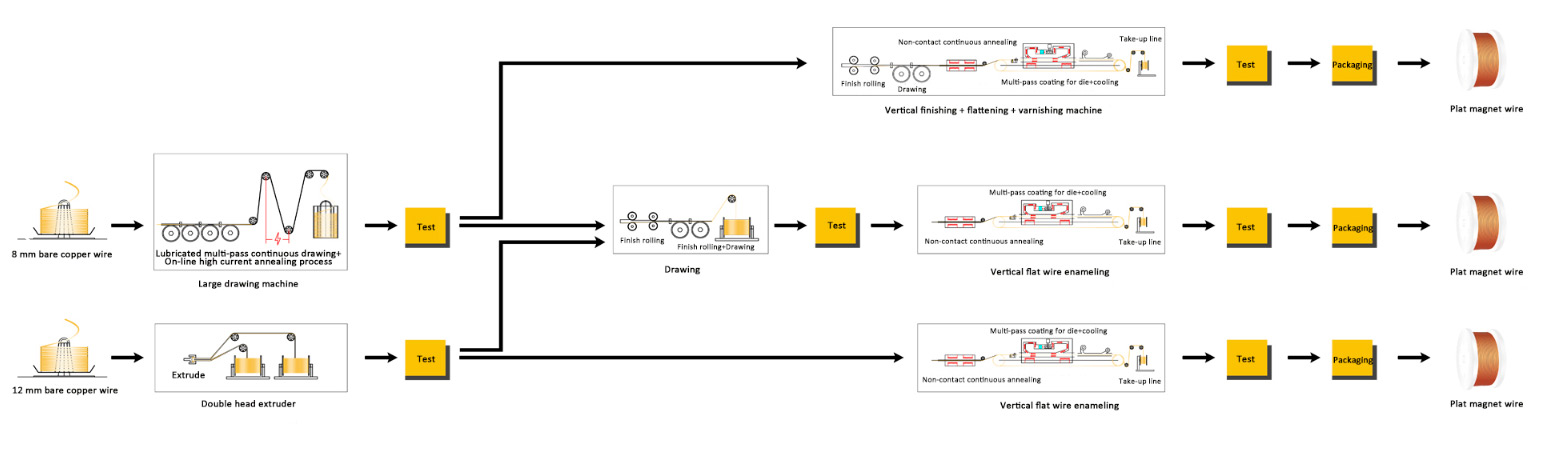

Plate Magnet Wire Production Process

Plate Magnet Wire Production Process

Plate Magnet Wire Executive Standard


GB/T 6109.4, GB/T6109.10, GB/T6109.23, JIS-C3202, IEC60317-19, IEC60317-21

Plate Magnet Wire Production Equipments

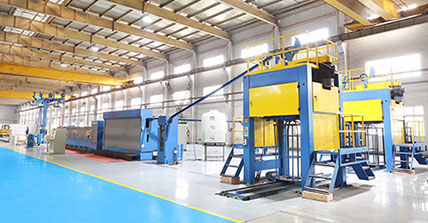

  • Double Head Large Drawing Machine
    Double Head Large Drawing Machine

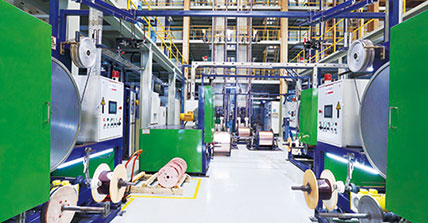

  • Rectangular Wire Enameled Machine
    Rectangular Wire Enameled Machine
