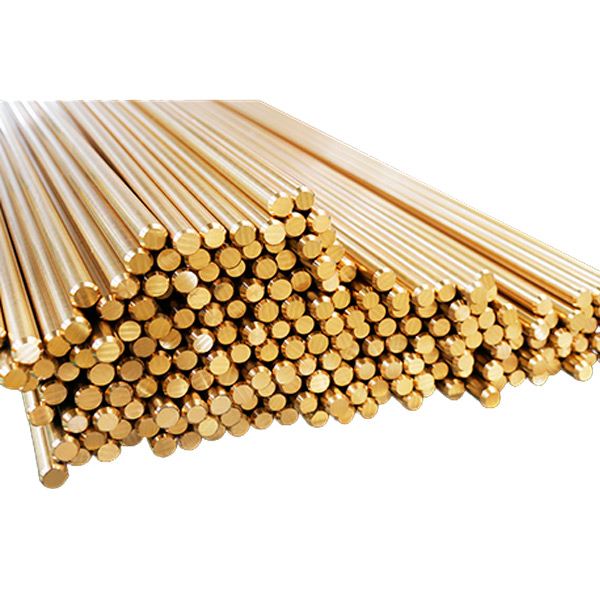

Leaded Brass Rod

The range of products that our company can provide you are round, square, hexagonal, and special shapes: (1) diameter: Φ2.0mm-Φ95mm; (2) length: 2.5m, 3m, etc. (customizable). The lead brass products produced by our company are suitable for various structural parts made by hot punching and cutting, such as auto parts, communication connectors, precision hardware, etc.
Lead Brass Rod Certifications
  • ISO9001
  • ISO14001
  • IATF16949
  • ISO45001
  • OSHMS

Lead Brass Rod Performance Advantages


  • Good cutting performance and mechanical properties

  • Can withstand hot and cold pressure processing

  • Good dimensional accuracy and straightness

  • Good stability to general corrosion

Lead Brass Rod Application Fields

  • Electrical Hardware
    Electrical Hardware

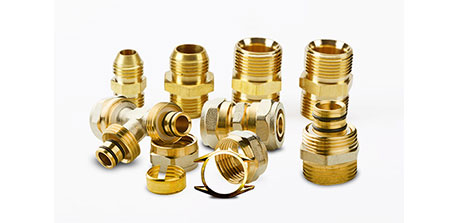

  • Precision Parts
    Precision Parts

Lead Brass Rod Performance Parameter


Alloy Grade

CuPbAIFe(max)SnZnImpurity
Hpb63-362.0-65.02.4-3.00.1REM0.75
Hpb63-0.161.5-63.50.05-0.30.15REM0.5
Hpb62-260.0-36.01.5-2.50.15REM0.65
Hpb60-358.0-61.02.5-3.50.30.3REM0.8
Hpb59-157.0-60.00.8-1.90.5REM1.0
Hpb58-357.0-59.02.5-3.50.50.5REM1.0
C360159.0-63.01.8-3.70.3Fe+Sn:0.5REM
C360259.0-63.01.8-3.70.5Fe+Sn:1.0REM
C360357.0-61.01.8-3.70.35Fe+Sn:0.6REM
C360457.0-61.01.8-3.70.5Fe+Sn:1.0REM
C360556.0-60.03.5-4.50.5Fe+Sn:1.0REM
CW602N61.0-63.01.7-2.80.050.10.1REMNi 0.3


others total 0.2

CW614N57.0-59.02.5-3.50.050.30.3REMNi 0.3


others total 0.2

CW617N57.0-59.01.6-2.50.050.30.3REMNi 0.3


others total 0.2

C3600060.0-63.02.5-3.00.35REM
C3601060.0-63.03.1-3.70.35REM

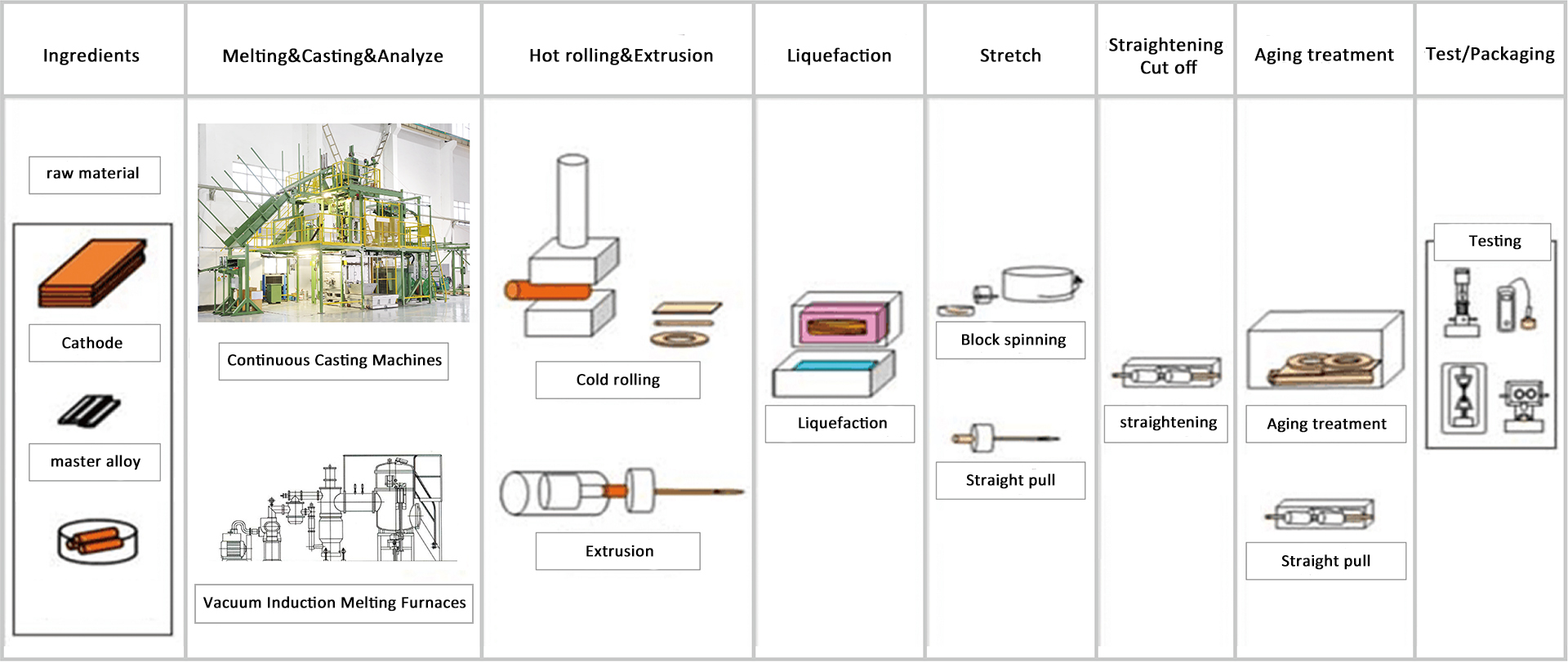

Lead Brass Rod Production Process

The production process is as follows:

Lead Brass Rod Production Process
  • 01
    Ingreients
  • 02
    Melting & Casting & Analyze
  • 03
    Hot Rolling & Extrusion
  • 04
    Liquefaction
  • 05
    Stretch
  • 06
    Straightening Cut off
  • 07
    Aging Treatment
  • 08
    Test / Packaging

Lead Brass Rod Executive Standard


GB / T 4423-2007, JIS H3260: 2012, etc.

Lead Brass Rod Production Equipments

  • 3150 Tons Reverse Extrusion Machine
    3150 Tons Reverse Extrusion Machine
  • German Schumacher Combined Stretching Machine
    German Schumacher Combined Stretching Machine
  • Four Continuous Rolling Flat Wire Press
    Four Continuous Rolling Flat Wire Press
  • Servo Continuous Annealing Machine
    Servo Continuous Annealing Machine
  • Taiwan Provincial Power Drawing Machine
    Taiwan Provincial Power Drawing Machine
  • Bell Type Annealing Furnace
    Bell Type Annealing Furnace
  • Schumacher Two Roll Finishing Machine
    Schumacher Two Roll Finishing Machine
