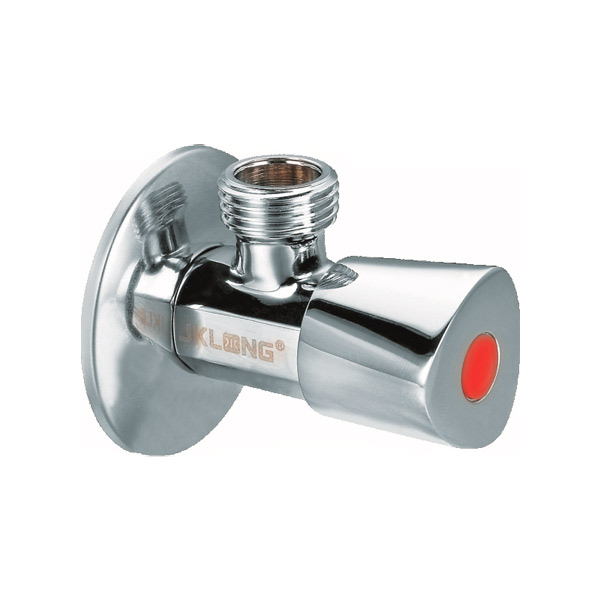

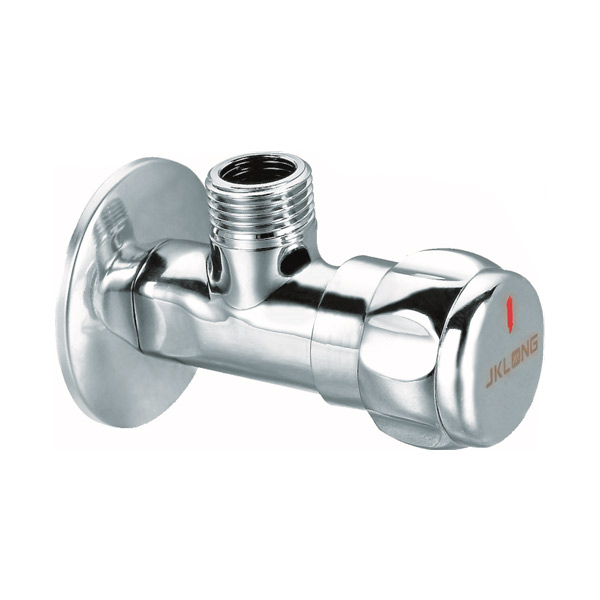

Brass Angle Valve(JKL-SJ-806)

Brass valve body, ceramic valve core, environmental protection and safety, beautiful appearance and long service life. We have beautiful appearance, high-grade and popular types. Jintian as a reliable and established angle valve supplier, provides high-quality brass angle valve for your diverse needs.

Products

Certifications

Brass Angle Valve Performance Advantages

Fast Material Supply. Have own copper bar Factory of Group
100% Leakage Test
Guaranteed Quality In Competitive Price
Complete R&D facilities and Excellent team
Strictly and perfect management in production
Have rich experience and strong ability to develop new products

Application Fields

heating-ventilation-and-air-conditioning
city-gas-industry
urban-water-supply-and-drainage
mechanical-equipment

Brass Angle Valve Performance Parameter

Body	CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR, as per request
Norminal Diameter	1/2"~2", DN15-DN50, can be customized
Norminal Pressure	2.5Mpa
Working Medium	Water, Non-causticity liquid, Saturated steam
Working Temperature	-20°C≤T≤99°C
Handle	Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type
Thread	ISO228/1, BSP, BSPT, NPT, ANSI BI 20.1 or as per request
Standard	AS4617, AS5200-012

Production Process

Brass Angle Valve FAQ



What is a Brass Angle Valve?


Angle valve is a valve that controls hot and cold water. The outlet of the angle valve is at a 90 degree right angle with the inlet. The flow of hot and cold water can be adjusted through this 90 degree right angle. There are three inlet, outlet and water volume control ports of the angle valve, so some people also call the angle valve "triangle valve".


How often should you replace angle stops?


Brass angle valves generally adopt ceramic valve core, which is not easy to oxidize and rust. The service life is more than 10 years, and it is particularly easy to remove.


What are the advantages of brass angle valve?


(1) The main body of the all copper triangular valve adopts the red stamping forging process and is manufactured by precision machining. It is natural, solid and durable.

(2) Advanced electroplating treatment is adopted in the process. After multiple coatings of acid copper, nickel and chromium, the electroplated coating has good combination, fine adhesion, uniform color, excellent corrosion resistance, bright appearance and never fade.

(3) The high-quality all copper body is forged from refined brass, which eliminates the hidden danger of pores and water leakage in the production of traditional sand casting.

(4) Streamlined design, novel and fashionable style, in line with lead-free standards, no harm to human body, in line with the concept of environmental protection.
