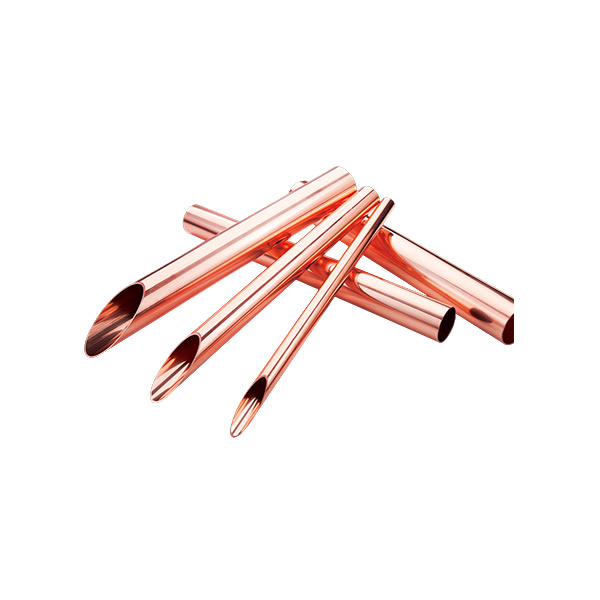

Copper Water Tube

The copper water pipes produced by our company are the best choice for water supply, gas supply and heating pipeline systems, and are widely used in cold and hot water supply and drainage of buildings, direct drinking water, gas, medical, food, chemical and other fields. Contact JINTIAN, one of the specialized copper pipe wholesale suppliers, for the copper water tube price.
Copper Water Tube Certifications
  • NSF
  • ASTM
  • TUV
  • JIS

Copper Water Tube Performance Advantages


  • Clean internal and external surfaces

  • High temperature and high pressure resistance

  • Health

  • Durable

Copper Water Tube Application Fields

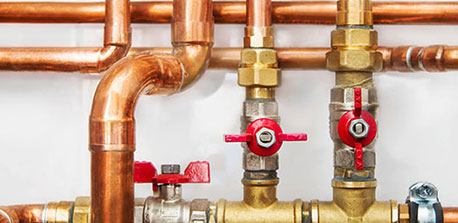

  • Water Supply Pipeline
    Water Supply Pipeline
  • Water Copper Pipe Fittings
    Water Copper Pipe Fittings

Copper Water Tube Performance Parameter


DN(Inch)O.D.(mm)thickness/mmMaximum working pressure


p/(N/mm2)

KLMHard state(Y)HardSemi-hard(Y2)Half Hard

Soft state(M)

Anneal Hard

KLMKLMKLM
1/49.520.890.76-1.7310.75-10.18.53-8.337.03-
3/812.71.240.890.6413.349.356.5610.597.425.216.126.124.29
1/215.881.241.020.7110.498.535.848.336.774.645.585.583.82
5/819.051.241.07-8.657.41-6.875.88-4.854.85-
3/422.231.651.140.819.946.744.737.895.353.754.414.413.09
128.581.651.270.897.635.814.026.054.613.193.83.82.63
11/434.931.651.41.076.195.223.964.914.143.143.413.412.59
11/241.281.831.521.245.794.783.884.63.793.083.133.132.54
253.982.111.781.475.084.273.514.043.392.782.792.792.29
21/266.682.412.031.654.693.933.183.723.122.522.572.572.08
379.382.772.291.834.523.722.963.592.952.352.432.431.94
31/292.083.052.542.114.293.552.943.42.822.332.322.321.92
4104.783.42.792.414.23.432.953.332.722.342.242.241.93
5130.184.063.182.774.033.142.733.22.492.162.052.051.78
6155.584.873.563.14.052.942.553.212.332.021.921.921.67
8206.386.885.084.324.323.162.683.422.512.132.072.071.75
10257.188.596.355.384.323.172.683.432.522.132.082.081.75
12307.9810.297.116.454.332.962.683.432.352.131.941.941.76

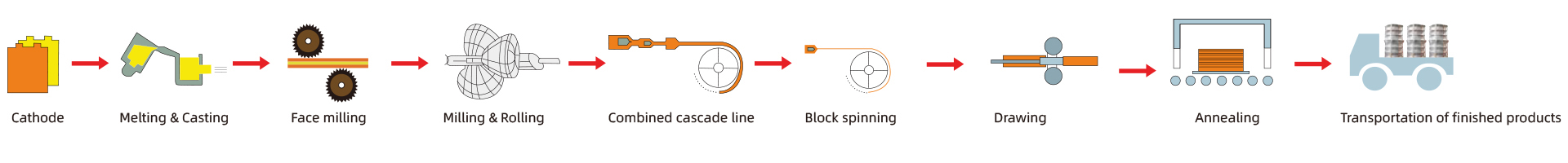

Copper Water Tube Production Process

The conventional production process:

Copper Water Tube Production Process
  • 01
    Cathode
  • 02
    Melting & Casting
  • 03
    Face milling
  • 04
    Milling & Rolling
  • 05
    Combined cascade line
  • 06
    Block spinning
  • 07
    Drawing
  • 08
    Annealing
  • 09
    Transportation of finished products

Copper Water Tube Executive Standard


Product performance standards: GB/T18033, ASTM B88, EN1057, AS1432

Copper Water Tube Production Equipments

  • Horizontal Continuous Casting Furnace
    Horizontal Continuous Casting Furnace

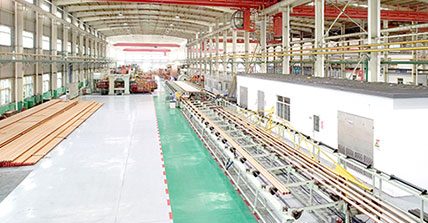

  • Face Milling Machine-copper Tube
    Face Milling Machine-copper Tube

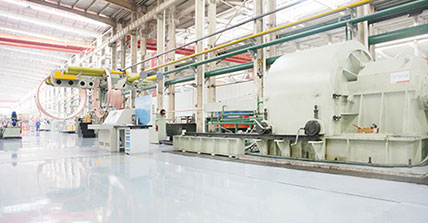

  • Three-roll Planetary Mill
    Three-roll Planetary Mill

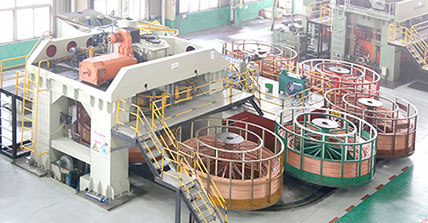

  • Pulling Machine
    Pulling Machine

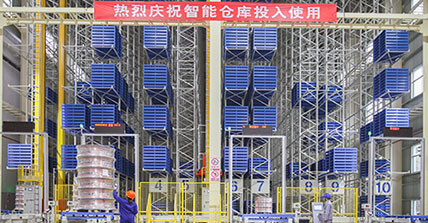

  • Smart Warehouse
    Smart Warehouse

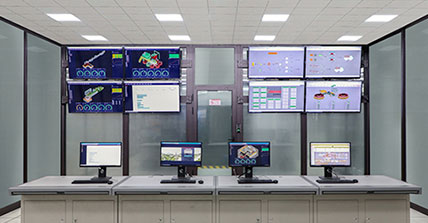

  • SCADA Data Acquisition And Monitoring Control System
    SCADA Data Acquisition And Monitoring Control System
