What Is Enamel Insulated Copper Wire?

Table of Content [Hide]

    Enamel insulated copper wire is a type of wire that has been coated with a layer of enamel insulation. This insulation is composed of a heat-resistant, electrically insulating, and durable polymer. Enamel insulated copper wire is commonly used in electrical applications where high levels of performance are required. In this article, we will explore the enamel insulated copper wire meaning, its advantages and applications.


    What is Enamel Insulation?

    Enamel insulation, a thin polymer coating applied to copper wire, is typically composed of polyester, polyurethane, or polyamide-imide. This coating forms a protective barrier that prevents contact with other conductors or materials, thereby mitigating damage and short-circuit risks. These properties make enamel-insulated copper wire ideal for space-critical and efficiency-driven applications like motors, transformers, and coils.


    Common Types of Enamel Insulated Copper Wire

    • Polyurethane Enameled Copper Wire: solderable without stripping; good flexibility and thermal resistance (typically up to 130°C)

    • Polyester Enameled Copper Wire: excellent mechanical strength; moderate heat resistance (up to 155°C)

    • Polyester-Imide Enameled Wire: high thermal endurance (up to 180°C); improved chemical and abrasion resistance


    Difference Between Copper Wire and Enamelled Copper Wire

    Copper wire is a metal conductor made from copper, valued for its high electrical conductivity, flexibility, and corrosion resistance. It may be used in bare form or covered with traditional plastic or rubber insulation depending on the application.

    While enameled copper wire is a type of copper wire coated with a thin layer of insulating enamel. This wire enamel is typically made of a polymer resin and is not visible at first glance — the wire often appears bare but is actually insulated.


    Copper Wire (Bare or PVC Insulated)Enameled Copper Wire (Magnet Wire)
    InsulationNone or plastic/rubberThin enamel coating
    AppearanceClearly insulated or shiny bareLooks bare but is coated
    FlexibilityHighVery high (especially in fine gauges)
    ApplicationsWiring, grounding, power circuitsMotors, transformers, coils, electromagnets
    Heat ResistanceModerate (depends on insulation)High (up to 240°C depending on type)
    CostGenerally lowerSlightly higher due to coating process


    Advantages of Enamel Insulated Copper Wire

    One of the main advantages of enamel insulated wire is its ability to withstand high temperatures. This makes it ideal for use in applications where the wire will be exposed to high levels of heat, such as in motors, transformers, and other electrical devices. The copper wire coating, made from materials like polyurethane or polyester, provides excellent resistance to moisture, chemicals, and other environmental factors that can affect the performance of the wire.


    Like motor magnet wire, enamel insulated copper wire is also highly durable and can withstand a great deal of wear and tear.  It is resistant to abrasion, corrosion, and other types of damage that can occur in industrial or heavy-duty applications. Additionally, the insulation provides excellent electrical properties, allowing for high levels of conductivity and reducing the risk of signal interference or power loss.

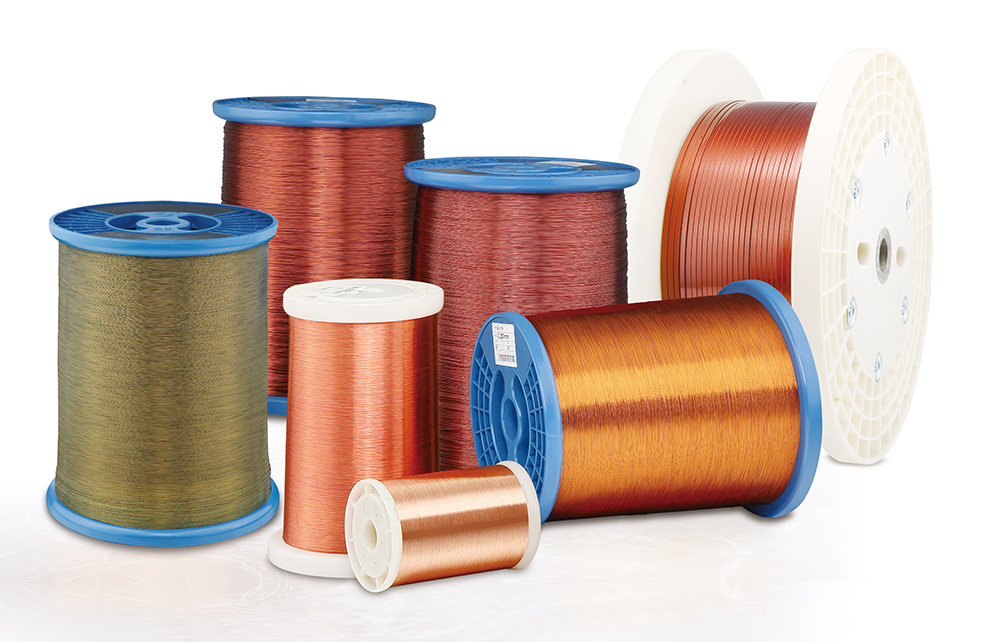

    enamel insulated wire


    Applications of Enamel Insulated Copper Wire

    Enamelled wire insulated is used in a wide variety of electrical applications. It is commonly found in motors, transformers, generators, and other types of electrical devices. The wire is also used in the construction of electric heating elements and in the manufacture of electrical coils, such as those used in speakers and other audio equipment.

    Enamel insulated copper wire is also used in the production of electronic components, such as resistors and capacitors. These components require high levels of precision and reliability, and the use of enamel insulated copper wire ensures that they will perform consistently and effectively over time.

    Enamel insulated copper wire is a highly versatile and durable type of wire that is used in a wide variety of applications. Its ability to withstand high temperatures, moisture, and other environmental factors make it ideal for use in industrial and heavy-duty applications. The wire also provides excellent electrical properties, allowing for high levels of conductivity and reducing the risk of signal interference or power loss. If you are looking for a reliable and effective wiring solution, enamel insulated copper wire is definitely worth considering.



    Contact JT Copper

    As a professional copper wire manufacturer, JT Copper produces various types of enameled magnet wire, including polyimide magnet wire and motor magnet wire, among others. To learn more about our copper wire products:


    FAQs of Enamel Insulated Copper Wire

    1. What is insulated copper wire?

    Insulated copper wire is a copper conductor encased in non-conductive material (like plastic, rubber, or enamel) to prevent electrical leakage, ensure safety, and allow multiple wires to be bundled safely.


    2. What is the purpose of the copper wire without insulation?

    Bare copper wire provides essential grounding by safely diverting electrical faults to earth and bonds metal structures to equalize potential, reducing shock hazards.


    3. What is copper enameling?

    Copper enameling is the process of applying enamel to the surface of copper. This process involves fusing powdered glass to copper using high heat, typically in a kiln. The result is a smooth, colorful, and durable surface with both artistic and functional value.


    4. Is enameled copper wire insulated?

    Yes, enameled copper wire is insulated. The "enameled" part refers to a thin coating, typically made of enamel or other insulating material, that is applied to the copper wire to provide electrical insulation. This coating protects the wire and prevents short circuits, especially when wires need to be tightly coiled together.


    5. Is enameled copper wires solderable?

    Yes, enameled copper wire can be soldered, but the enamel insulation must be removed to allow the solder to bond properly to the copper.
