Differences Between Annealing and Non-Annealed Copper Wire

Copper wire is widely used in multiple industries due to its excellent electrical conductivity and versatility. However, the properties of copper wire can be further enhanced through the process of annealing. In this blog post, we will delve into the key differences between annealed and non-annealed copper wire and highlight the benefits of annealing for various applications.

What is Annealed Meaning and How Does it Affect Copper Wire?

Annealing refers to the process of heating and then slowly cooling a metal, such as copper, to alter its physical and mechanical properties. The copper annealing process helps to relieve stress, increase ductility, and improve electrical conductivity. When copper wire is annealed, the wire becomes softer, more flexible, and resistant to breaking under tension.

Enhanced Electrical Conductivity of Annealed Copper Wire

One of the significant advantages of annealed copper wire lies in its enhanced electrical conductivity. During the annealing process, the crystal structure of the wire is refined, reducing the number of crystal defects and impurities. This ensures a smoother flow of electric current through the wire, leading to better transmission efficiency and reduced energy loss.

Improved Ductility and Flexibility

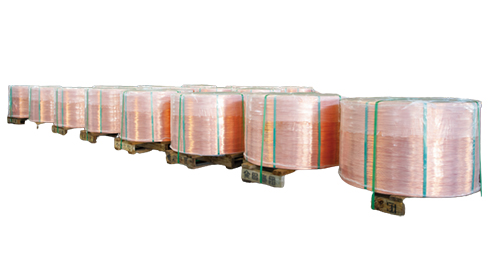

Non-annealed (hard-drawn) copper wire, while still useful in specific applications, may lack the necessary ductility and flexibility required for more demanding installations. Annealed copper wire, on the other hand, possesses higher ductility and can be easily shaped, bent, and twisted without breaking. This property makes it ideal for applications that involve tight spaces, intricate electrical connections, or repeated movements.

Annealed vs Hard Drawn Copper Wire

Versatile Applications of Annealed Copper Wire

The advantages offered by annealed copper wire have paved the way for its increased utilization across a wide range of industries. Industries that require flexible wiring solutions, such as electronics, telecommunications, and automotive, benefit greatly from the use of annealed copper wire. Its improved flexibility enables easier installation, maintenance, and repair, reducing the risk of wire damage during these processes.

• Electronics: Annealed copper wire is commonly used for internal wiring, circuit connections, and precision components where repeated bending and tight routing are required. Its smooth surface and refined grain structure help ensure stable electrical performance and minimize the risk of breakage during assembly.

• Motor and transformer windings: The improved ductility allows the wire to be tightly wound around cores without cracking, while its high conductivity supports efficient energy transmission and reduced heat loss.

• Building wiring and indoor electrical installation: Annealed copper wire simplifies installation in conduits, corners, and complex layouts. Electricians benefit from its ease of handling, which reduces installation time and lowers the risk of damage during pulling and bending.

• Telecommunications and automotive wiring harnesses: Its ability to withstand repeated movement makes it an ideal choice for applications that demand both electrical performance and mechanical flexibility.

International Annealed Copper Standard

In practical applications, annealed copper wire is typically manufactured and supplied in accordance with recognized international and industry standards, which ensure consistent quality, performance, and safety. These standards define requirements for electrical conductivity, mechanical properties, dimensional tolerances, and surface quality.

Commonly referenced standards include ASTM B3 (Standard Specification for Soft or Annealed Copper Wire) and ASTM B8 (Standard Specification for Concentric-Lay-Stranded Copper Conductors), which are widely used in North America. These standards ensure that annealed copper wire meets strict criteria for purity, conductivity, and uniformity.

In global and regional markets, annealed copper wire may also comply with IEC, EN, or JIS standards, depending on application requirements and geographic location. Such standards are particularly important for electrical, telecommunications, and industrial projects, where compliance is essential for system compatibility and regulatory approval.

In conclusion, the copper wire annealing process enhances its properties, giving rise to annealed copper wire which offers superior electrical conductivity, flexibility, and ductility compared to non-annealed wire. These attributes make annealed copper wire the preferred choice for various industries, such as electronics and telecommunications. By understanding the difference between hard drawn copper and annealed copper wire, you can make informed decisions when choosing the right wire for your specific applications.

Contact JINTIAN Copper

Jintian Copper provides 2.6mm annealed tinned copper wire designed to deliver excellent electrical conductivity, uniform softness, and consistent mechanical performance. The product is widely used in electrical wiring, motor windings, and industrial applications where flexibility and reliability are critical. Contact the Jintian team directly for expert technical support and customized solutions backed by advanced production technology and strict quality control.

• Visit our website: https://jtcopper.com/

• Email our sales team: service@jtgroup.com.cn

FAQs of Annealed Copper Wire

What does annealed copper mean?

Annealed copper refers to copper that has undergone a controlled heat treatment process known as annealing. During this process, the copper is heated to a specific temperature and then slowly cooled to relieve internal stresses caused by drawing or forming. As a result, annealed copper becomes softer, more ductile, and easier to work with, while maintaining excellent electrical conductivity.

What is annealed copper wire?

Annealed copper wire is copper wire that has been heat-treated to improve its flexibility, ductility, and resistance to fatigue. Compared with non-annealed (hard-drawn) copper wire, annealed copper wire can be bent, twisted, and shaped more easily without cracking or breaking. This makes it ideal for electrical wiring, motor windings, and applications requiring frequent movement or tight installation spaces.

How to anneal copper wire?

Annealing copper wire involves heating the wire to an appropriate temperature (typically until it reaches a dull red color) and then allowing it to cool slowly, either in air or in a controlled environment. In industrial production, annealing is performed using continuous or in-line annealing equipment to ensure consistent material properties. Proper temperature control is essential to avoid oxidation and to achieve uniform softness.

What is annealed copper used for?

Annealed copper is widely used in applications that require high electrical conductivity combined with flexibility, including:

• Electrical and electronic wiring

• Motor and transformer windings

• Telecommunications cables

• Building and indoor wiring

• Automotive wiring harnesses

Its ability to withstand repeated bending and vibration makes annealed copper the preferred choice for both industrial and commercial electrical systems.
