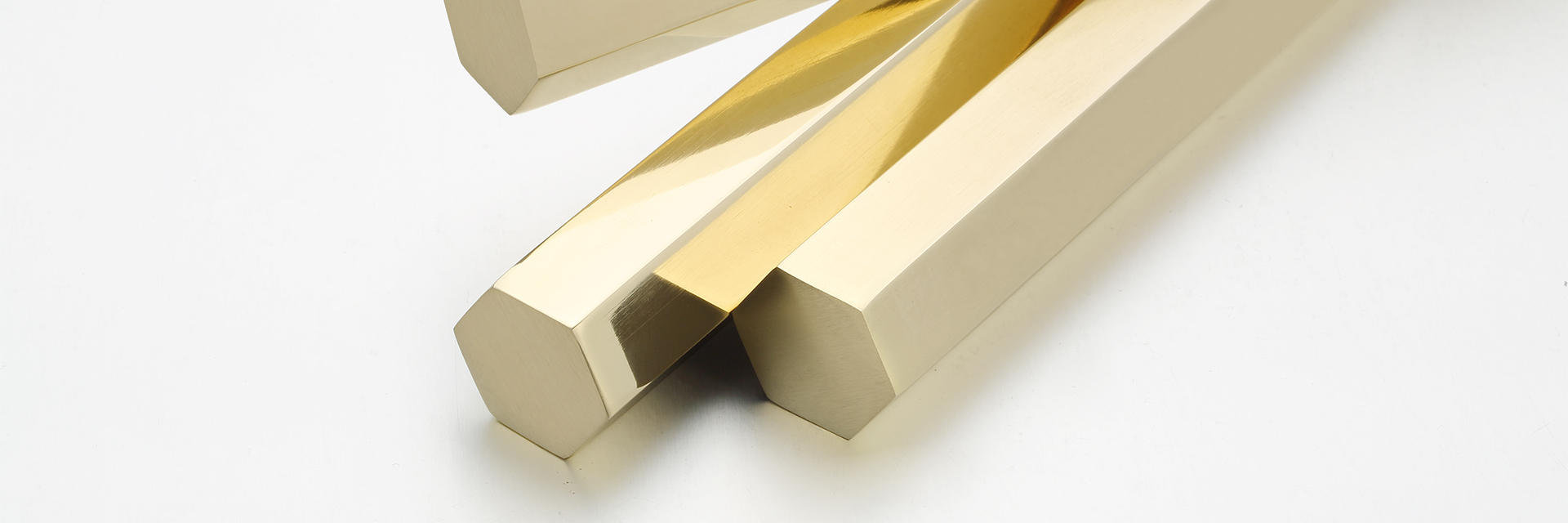

Precision Extrusion Rod

The precision extrusion rods produced by our company are round, square, hexagonal and special-shaped, and the specifications range from 2mm to 95mm. It has the characteristics of high straightness, high tolerance consistency, and high comprehensive mechanical performance. The precision extrusion rods can be applied to precision hardware accessories, special high-pressure valve bodies, valve stems, connectors, rail transit, etc. processed in multiple ways such as automatic lathes, hot punching, etc. If you need our brass extrusion rods or other copper products like leaded brass rod, you can contact us., you can contact us.

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
  -  Jumbo Coil
  -  Plastic-Coated Copper Tubes
  -  Capillary Copper Tube
  -  Oxygen-Free Copper Tube
  -  High Strength Alloy Tube
  -  High Strength Copper Pipe
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)
Copper Wire Size 
- 3mm Wire
- 8mm Wire

Precision Extrusion Rod Certifications

Precision Extrusion Rod Application Fields

Elbow Fittings

Precision Extrusion Rod Performance Parameter

Product name	Grade	Chemical composition%, Not greater than (except for the remaining amount and range value)
Product name	Grade	Cu	Pb	Fe	Ni	Sn	Mn	P	Si	AL	Zn	other	Other total impurities	Sum of impurities
Precision Extrusion Rod	H59	57.0～60.0	0.5	0.3	-	-	-	-	-	-	margin	-	-	1.0
	H62	60.5～63.5	0.08	0.15	-	-	-	-	-	-	margin	-	-	0.5
	HPb59-1	57.0～60.0	0.8～1.9	0.5	-	-	-	-	-	-	margin	-	-	1.0
	HPb58-3	57.0～60.0	2.0～3.5	0.5	-	-	-	-	-	-	margin	-	-	1.0
	HPb60-3	58.0～61.0	2.5～2.5	-	-	-	-	-	-	-	margin	-	-	0.85
	C3771	57.0～61.0	1.0～2.5	-	-	-	-	-	-	-	margin	Fe+Sn1.0	-	-
	C3603	57.0～61.0	1.8～3.7	0.35	-	-	-	-	-	-	margin	Fe+Sn0.6	-	-
	C3604	57.0～61.0	1.8～3.7	0.5	-	-	-	-	-	-	margin	Fe+Sn1.0	-	-
	C3602	59.0～63.0	1.8～3.7	0.5	-	-	-	-	-	-	margin	Fe+Sn1.0	-	-
	C36000	60.0～63.0	2.5～3.0	0.35	-	-	-	-	-	-	margin	-	0.5	-
	C37100	58.0～62.0	0.6～1.2	0.15	-	-	-	-	-	-	margin	-	0.4	-
	C37700	58.0～61.0	1.5～2.5	0.3	-	-	-	-	-	-	margin	-	0.5	-
	C46500	59.0～62.0	0.2	0.1	-	0.5～1.0	-	-	-	-	-	As0.02～0.06	-	-
	CW612N	59.0～60.0	1.6～2.5	0.3	-	0.3	-	-	-	0.05	-	-	0.2	-
	CW614N	57.0～59.0	2.5～3.5	0.3	0.3	-	-	-	-	0.05	-	-	0.2	-
	CW617N	57.0～59.0	1.6～2.5	0.3	0.3	0.3	-	-	-	0.05	-	As0.02～0.15	0.2	-
	CW511L	61.5~63.5	0.2	0.1	0.3	0.01	-	-	-	0.05	-	-	-	-
	CW602N	61.0～63.0	1.7～2.8	0.1	0.3	0.01	-	-	-	0.05	margin	As0.02～0.15	0.2	Mn: 0.1
	QSi0.6-2.1	margin	≤0.02	≤0.2	1.6～2.5	-	≤0.1	-	0.4～0.8	-	-	≤0.3	-	-
