Flexible Busbar vs. Rigid Copper Busbar for EV Battery Packs and Energy Storage Cabinets

In electric vehicles (EVs) and energy storage systems, electrical interconnection design plays a crucial role in safety, efficiency, and long-term reliability. Among the most widely used solutions, the choice between flexible busbar and rigid copper busbar directly affects vibration resistance, space utilization, assembly efficiency, and thermal performance.

As battery pack densities increase and energy storage cabinets become more compact, engineers are increasingly required to balance mechanical flexibility with electrical conductivity and system durability.

What Is a Flexible Busbar in Modern Electrical Systems?

A flexible busbar, often made from laminated copper foils or braided copper strips, is designed to accommodate movement, vibration, and thermal expansion. Unlike rigid copper busbars, it can bend and absorb mechanical stress without losing electrical continuity. In EV battery packs and energy storage cabinets, this flexibility is essential because systems are constantly exposed to road vibration and mechanical shock, thermal expansion and contraction during charge/discharge cycles, and assembly tolerance variations in modular battery design. This makes flexible busbars a key solution in next-generation high-density energy systems.

Rigid Copper Busbar: Traditional Strength and High Current Stability

Rigid copper busbars are solid copper conductors used for fixed electrical connections. They offer excellent conductivity, high current-carrying capacity, and stable thermal performance. In comparison to flexible busbars, rigid designs are simpler and often more cost-effective for stationary systems where vibration is minimal. Their advantages include:

·       Excellent current carrying capability

·       Low electrical resistance

·       Stable thermal dissipation in fixed installations

·       Simple manufacturing and lower material cost

However, their lack of flexibility limits their use in dynamic environments such as EV battery packs.

Vibration Resistance: Why Flexible Busbar Matters in EV Applications

One of the most critical differences between flexible busbar and rigid busbar is vibration performance. EV battery packs are constantly subjected to mechanical vibration during driving conditions. Rigid copper busbars can develop stress at connection points over time, leading to loosening or micro-cracks. Flexible busbars solve this problem by absorbing mechanical stress, reducing strain on terminals and maintaining stable electrical contact. In energy storage cabinets, this also helps reduce maintenance frequency and improves long-term reliability in large-scale installations.

Space Optimization and Assembly Efficiency

As EV battery systems become more compact, space utilization becomes a major design constraint. Flexible busbars offer significant advantages in routing and assembly flexibility. They allow engineers to:

·       Route connections in tight spaces without rigid alignment constraints

·       Reduce assembly complexity in modular battery packs

·       Accommodate design variations between different battery layouts

Rigid copper busbars, while electrically efficient, require precise alignment and fixed positioning, which can limit design freedom in compact systems.

Thermal Management and Electrical Performance

Both flexible and rigid busbars must handle high current loads, but their thermal behavior differs in real applications. Rigid copper busbars generally provide slightly better thermal conduction due to their solid cross-section, allowing efficient heat dissipation in stable environments. However, in EV systems where thermal cycling is frequent, connection stability becomes equally important. Flexible busbars, especially laminated designs, distribute heat more evenly and reduce localized stress at connection points. This helps improve long-term thermal reliability even if absolute conductivity is slightly lower than rigid copper.

Current Carrying Capacity and System Design Balance

From an electrical perspective, rigid copper busbars typically offer higher theoretical current carrying capacity due to their solid structure. However, in real EV and energy storage systems, performance is not determined by conductivity alone. Flexible busbars may have slightly higher resistance, but they provide better system-level reliability under dynamic conditions. This trade-off is often acceptable in modern designs where safety and durability are prioritized over marginal efficiency gains.

Engineering Selection Perspective

In practical engineering design, the choice between flexible and rigid busbars depends on system requirements:

·       Flexible busbar is preferred for EV battery packs, energy storage systems, and applications with vibration or movement

·       Rigid copper busbar is preferred for fixed industrial power distribution systems and stationary electrical cabinets

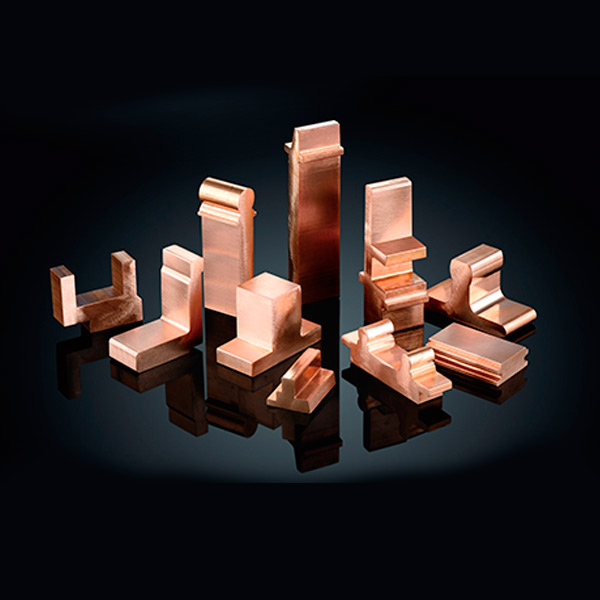

In many advanced systems, both types are used together to optimize performance and structural efficiency. Jintian Copper provides customized special-shaped copper busbar solutions to support both flexible and rigid electrical connection requirements in EV and energy storage industries.

FAQ: Flexible Busbar vs Rigid Copper Busbar

What is a flexible busbar used for?

It is mainly used in EV battery packs and energy storage systems where vibration and movement are present.

Is rigid copper busbar better for current capacity?

Yes, rigid busbars generally have higher theoretical current carrying capacity due to their solid structure.

Why choose flexible busbar in EV applications?

Because it improves vibration resistance, reduces mechanical stress, and increases system reliability.

Can both types be used together?

Yes, many systems combine both for optimal electrical and mechanical performance.
