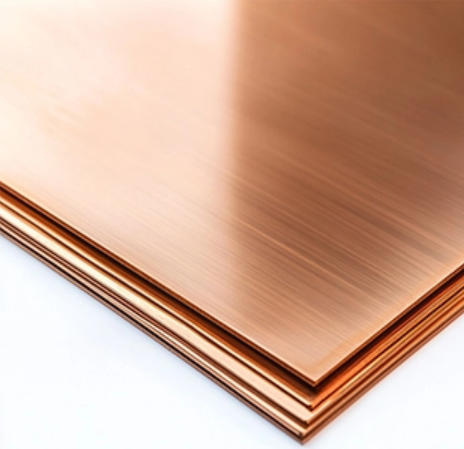

CuSn6 Phosphor Bronze Strip for Connector Springs: Temper, Stress Relaxation And Fatigue Performance

Connector springs have to do more than conduct electricity. They must maintain contact force, withstand repeated deflection, and remain dimensionally stable after assembly and service. That is why material selection often comes down to a balance between strength, conductivity, formability, and long-term spring behavior. CuSn6 is widely considered when these requirements need to be balanced in a single copper alloy.

As a Tin Phosphor Bronze, CuSn6 offers higher strength and elastic performance than many pure-copper materials while retaining useful electrical conductivity and forming capability. For manufacturers evaluating Phosphor Bronze Strip for Terminals, Spring contacts, and Precision Electrical Components, the alloy is only part of the decision. Temper, thickness, forming method, and expected loading conditions can be equally important.

What is CuSn6 Phosphor Bronze?

CuSn6 is a Tin Phosphor Bronze containing approximately 6% tin, with phosphorus used as a deoxidizing and alloying addition. Increasing tin content compared with lower-tin bronze generally increases strength and hardness while reducing electrical conductivity.

The combination makes CuSn6 Bronze particularly useful where a component must flex repeatedly without permanently losing its functional shape. Typical applications include Connector springs, Terminals, Electrical contacts, Clips, and other stamped elastic components.

For manufacturers purchasing CuSn6, it is therefore important to look beyond the alloy name and consider the required temper and final component performance.

CuSn6 Material Properties and Tin Content

The tin level has a direct influence on the basic performance profile of the alloy. Compared with lower-tin Phosphor Bronze, CuSn6 can provide higher strength and better elastic behavior, while still maintaining useful conductivity.

The actual properties of CuSn6 material depend on composition limits, temper, thickness, and manufacturing condition. A harder strip may provide higher strength, for example, but it may also require more careful forming.

This balance is one reason CuSn6 Bronze is attractive for Electrical components that need both mechanical resilience and conductivity.

How Temper Affects CuSn6 Spring Performance

For Spring contacts, temper can be just as important as the nominal alloy. Cold working increases strength and hardness, allowing the finished strip to resist permanent deformation when it is repeatedly deflected.

A softer condition may be easier to stamp or bend, while a harder condition can provide greater resistance to deformation in the finished spring. However, selecting the hardest material is not automatically the best solution because forming requirements still need to be considered.

For a CuSn6 connector spring, manufacturers should evaluate the relationship between strip temper, bend radius, forming sequence, required contact force, and final geometry. In progressive stamping, these factors can determine whether the selected strip performs consistently throughout production.

Stress Relaxation and Fatigue in Connector Springs

A connector spring may be deflected during assembly and then remain under load for an extended period. Over time, stress relaxation can reduce the contact force. Repeated insertion, vibration, and mechanical movement can also introduce fatigue loading.

CuSn6 is useful in these applications because its strength and elastic properties allow it to maintain functional spring behavior under repeated deformation. Nevertheless, alloy selection alone does not determine fatigue life.

Spring geometry, working stress, surface condition, forming history, operating temperature, and temper all influence performance. A well-designed Phosphor Bronze Strip component should therefore operate within an appropriate elastic range rather than relying only on the nominal strength of the material.

For demanding connector applications, testing the actual spring geometry under representative temperature and loading conditions is often more meaningful than comparing alloy datasheets alone.

CuSn6 Bronze Strip for Electrical Contacts

The combination of strength, spring performance, and conductivity makes CuSn6 Bronze Strip suitable for many electrical contact applications. It can be stamped into terminals, clips, contact springs, and other precision components where consistent mechanical force is required.

Compared with pure copper, CuSn6 generally sacrifices some conductivity in exchange for substantially greater mechanical capability. This trade-off is often acceptable when the component's primary function requires reliable contact force rather than maximum electrical conductivity.

JINTIAN's Tin Phosphor Bronze Strip range can be considered when selecting strip material for connector and spring applications. Other forms, such as Phosphor Bronze Rod, may be more appropriate when the component is machined rather than stamped, while Copper Strip & Roll provides an alternative product category for applications with different conductivity and forming priorities.

How to Specify CuSn6 Strip for Connector Applications

When ordering CuSn6, the alloy designation alone is not enough to define a production-ready material. Buyers should specify the dimensions and condition required by the component and forming process.

For connector springs, the most important information normally includes:

·       Thickness and width: These determine the available cross-sectional area and strongly influence spring force.

·       Temper: The selected condition affects strength, elongation, forming behavior, and resistance to permanent deformation.

·       Dimensional tolerance: Important for progressive stamping and components with tight assembly requirements.

·       Surface condition: Relevant for electrical contact reliability and appearance.

·       Mechanical requirements: Tensile strength, elongation, hardness, or other project-specific requirements may need to be defined.

·       Application conditions: Temperature, repeated deflection, contact force, and expected service environment should be considered when selecting the material condition.

For high-volume connector production, it is also advisable to validate the selected CuSn6 material using the actual strip thickness, temper, tooling, and spring geometry.

Conclusion

CuSn6 provides a useful balance of strength, conductivity, formability, and spring performance, making it a strong candidate for connector springs and electrical contact components. However, reliable performance depends on more than the alloy designation. Temper, strip dimensions, spring geometry, stress level, and operating environment all influence stress relaxation and fatigue behavior. For manufacturers selecting phosphor bronze strip, evaluating these factors together is the most reliable way to match material performance with the requirements of the finished connector.

FAQ

What is CuSn6 used for?

CuSn6 is commonly used for Electrical contacts, Connector springs, Terminals, Clips, and other Components requiring strength and elastic performance.

Is CuSn6 suitable for connector springs?

Yes. Its combination of strength, elasticity, and electrical conductivity makes it suitable for many spring-contact applications.

How does tin content affect CuSn6?

Higher tin content generally increases strength and hardness but reduces electrical conductivity and can make forming more demanding.

Does temper affect stress relaxation?

Yes. Temper changes the strength and deformation behavior of the strip, which can influence its ability to maintain contact force over time.

Is CuSn6 electrically conductive?

Yes. CuSn6 conducts electricity, although its conductivity is lower than that of commercially pure copper.

What strip dimensions are important for spring contacts?

Thickness, width, dimensional tolerance, and temper are particularly important because they directly affect spring geometry, force, and forming performance.
