Enamelled Copper Wire: Why Can an Insulation Film Only Tens of Microns Thick Determine Motor Life?

Note: This article discusses the material selection, application boundaries, and failure mechanisms of enamelled copper wire. It does not cover enamel formulation, coating passes, furnace temperature, line speed, or curing windows. The term “tens of microns” is used to indicate a common scale range. Actual enamel film build varies depending on wire diameter, insulation class, round or rectangular wire structure, and standard specifications.

When a motor burns out, the copper wire overheating is often the first suspected cause. When a transformer experiences a short circuit, people usually first check the conductor cross-sectional area and winding temperature rise. However, in many low-voltage motors, compressors, relays, transformers, and new energy vehicle drive motors, the component that actually separates adjacent turns of wire is often only an organic insulating enamel film with a thickness ranging from microns to tens of microns.

This thin enamel film contributes almost no electrical conductivity, yet it must simultaneously withstand winding bending, slot abrasion, impregnation resin, refrigerants or oils, long-term temperature rise, PWM pulse voltage, and partial discharge. As long as the copper core remains intact, it can still conduct electricity; but once the enamel film develops a pinhole, crack, or electrical aging path at a single point, adjacent turns may evolve from a localized short circuit into complete winding failure.

IEC 60317 and NEMA MW 1000 do not define enamelled wire simply as “copper wire coated with paint.” Instead, they evaluate finished wire products through multiple aspects, including dimensions, enamel build-up, breakdown voltage, pinholes, flexibility, adhesion, heat shock resistance, softening breakdown, solvent resistance, and solderability [1-9]. This demonstrates that the core value of high-end enamelled wire is not whether the enamel surface appears smooth and glossy, but whether the insulation function remains stable throughout the entire coil of wire.

Enamelled copper wire is not sold as “copper + a layer of coating,” but as the probability that millions of turn-to-turn contacts per unit length will continue operating without failure.

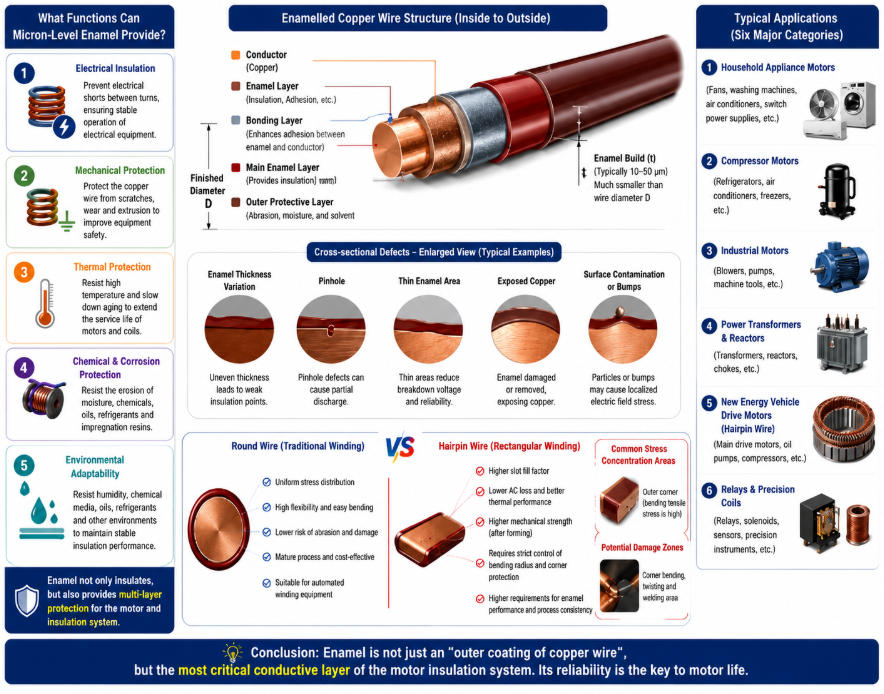

1. Where Is Enamelled Copper Wire Used? It Is Far More Than Just Motor Winding Wire

Enamelled wire, also known as winding wire or magnet wire, is designed to wind conductors into coils with high numbers of turns and high slot fill factors while maintaining the smallest possible insulation thickness. Compared with ordinary plastic-insulated wires, which generally have thicker insulation layers and are mainly used for connection and power supply, enamelled wire focuses on thin insulation, high filling efficiency, and excellent winding capability.

Although these products are all called enamelled copper wire, their required material systems are not identical. For small coils operating at low temperatures and requiring direct soldering, polyurethane enamel coatings are often selected due to their solderability. High-temperature motors commonly use polyesterimide, polyamide-imide, or double-layer composite enamel systems. New energy vehicle drive motors must additionally address risks caused by high-frequency PWM pulses and partial discharge [2-8,10-13].

2. Why Can the Enamel Film Be So Thin, Yet Cannot Be Reduced Indefinitely?

The economic value of enamelled wire comes from being “thin.” A thinner insulation layer allows more copper to be placed within the same slot space, increasing the slot fill factor, reducing winding resistance and copper loss, and enabling more compact motor or transformer designs.

However, enamel film is not an ideal cylindrical layer with perfectly uniform thickness and zero defects. Surface scratches on copper wire, enamel flow behavior, curing shrinkage, die eccentricity, and fluctuations during multi-pass coating can all create localized thin areas. For insulation performance, meeting the average thickness requirement does not guarantee that the minimum local thickness is sufficient; the thinnest point often determines the occurrence of pinholes, breakdown, and partial discharge initiation.

Therefore, IEC 60317 specifies enamel build-up, finished wire dimensions, and requirements for pinholes, breakdown voltage, flexibility, and adhesion according to different wire diameters and insulation classes [1]. Increasing enamel thickness can improve electrical safety margins, but it reduces slot fill factor, increases final wire diameter, and raises the tensile strain on the outer layer during bending.

The essence of enamel thickness is not “the thicker the insulation, the safer,” but rather the balance between copper fill rate, electrical margin, bending strain, and manufacturing consistency.

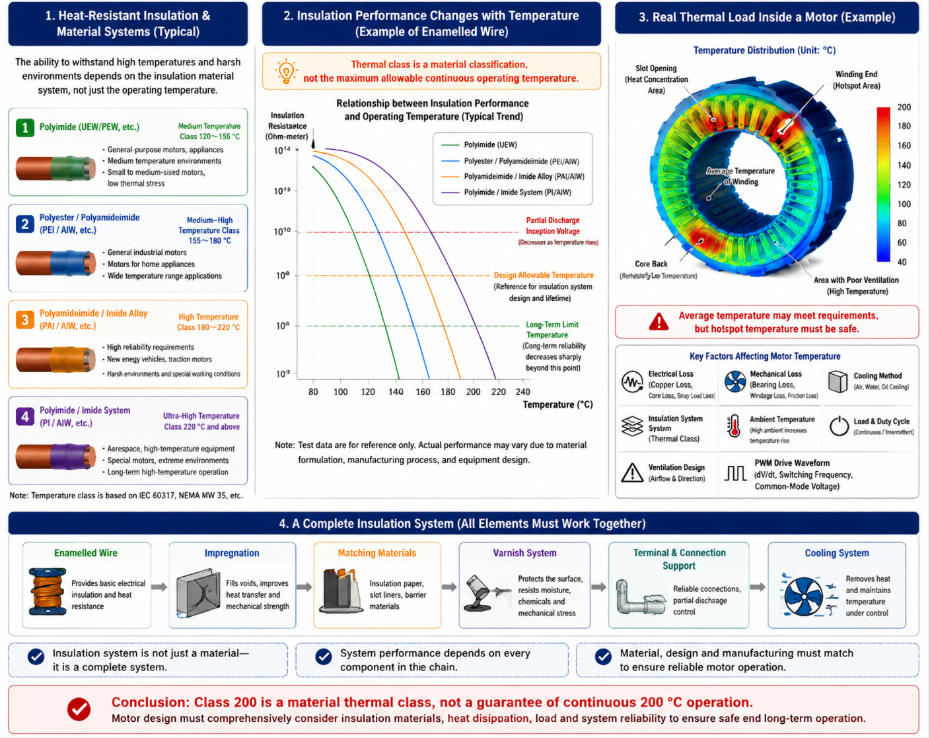

3. Thermal Class 200 Does Not Mean the Motor Can Continuously Operate at 200°C

One of the most common misunderstandings about enamelled wire is interpreting “Class 155, 180, 200, 220, or 240” as the maximum continuous operating temperature allowed for the motor.

IEC 60317 defines temperature indexes and heat shock requirements for different enamelled wire categories. For example, solderable polyurethane enamelled round copper wire may correspond to Class 155, polyesterimide systems may reach Class 180 or 200, while polyamide-imide systems can achieve Class 220 or 240 [2-7].

However, the temperature index is based on long-term thermal life evaluation under specified testing methods. It does not represent the recommended continuous winding hotspot temperature after installation in a specific motor. Actual service life is also affected by oxygen, humidity, refrigerants, impregnation resin, mechanical stress, voltage waveform, partial discharge, and cooling conditions.

IEC 60034-18-1 also emphasizes that the complete electrical insulation system should be evaluated rather than judging performance based only on the thermal class of a single material [10].

Thermal aging causes oxidation, polymer chain breakage, cross-linking changes, and loss of volatile components. Macroscopically, this appears as enamel hardening, embrittlement, cracking, and changes in dielectric loss and breakdown performance. Accelerated thermal aging studies have shown that insulation resistance, partial discharge inception voltage, and dielectric parameters change systematically during aging processes [17-22].

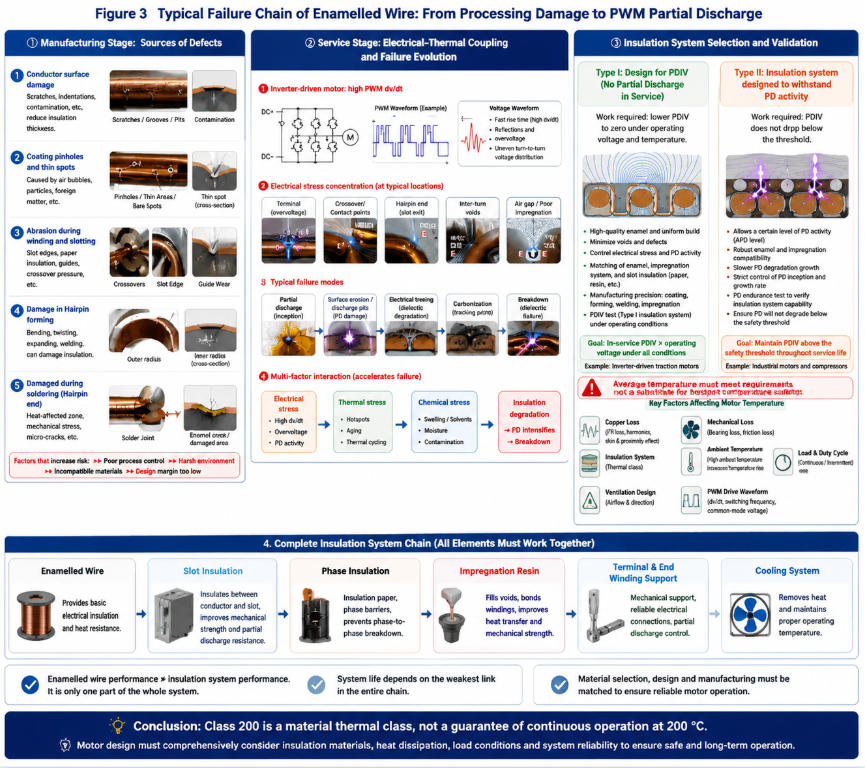

4. Why Can Enamelled Wire Fail After Passing Factory Inspection but After Being Wound Into a Motor?

The inspection samples of enamelled wire are usually straight samples or specified twisted specimens, while actual manufacturing processes subject the wire to repeated bending, tensioning, slot insertion, shaping, welding, and impregnation.

A wire with no pinholes at shipment does not necessarily remain intact after winding and assembly.

1. Random Winding with Round Wire: Cross Points and Slot Openings Are the Most Dangerous Areas

In random winding, wire turns cross each other, and contact points experience local pressure. When coils are inserted into stator slots, slot edges, insulation paper edges, and guiding tools may scratch the enamel layer.

A small surface scratch that is barely visible may simultaneously reduce enamel thickness, adhesion, and breakdown voltage.

2. Rectangular Magnet Wire and Hairpin: Edges and Forming Areas Are the Most Critical

Rectangular conductors improve slot fill factor, but during bending, the enamel film on the outer radius experiences greater tensile stress, while the inner side may experience compression and wrinkling. Twisting, expanding, and welding areas also undergo complex three-dimensional deformation.

IEC 60317-93 and other standards specifically define requirements for Class 220 double-layer enamelled rectangular copper wire [8]. However, qualified standard wire cannot replace cross-sectional and electrical verification after forming.

3. Impregnation Does Not Necessarily Repair All Enamel Defects

Impregnation resin can secure the winding, improve heat transfer, and fill some gaps. However, for through scratches, exposed copper, or high-field defects, resin cannot always restore the original turn insulation performance.

There are also issues related to swelling, stress, and compatibility between impregnation materials and enamel films [10,18-19].

5. Why Do New Energy Vehicle Motors Amplify Enamelled Wire Challenges?

Traditional frequency-powered motors experience relatively slow turn-to-turn voltage changes, while inverter-driven motors are exposed to repeated steep voltage pulses.

SiC devices can improve system efficiency and power density due to their high switching speed, but they may also introduce higher dv/dt, reflected overvoltage at terminals, and more uneven turn-to-turn voltage distribution. Research shows that PWM waveform characteristics, cable length, pulse rise time, and overvoltage behavior can change the partial discharge behavior of twisted enamelled wire pairs [14-16].

Partial discharge does not immediately break down the enamel film. Instead, repeated micro-discharges occur in air gaps, cracks, and contact edges, gradually eroding the insulation surface and eventually forming electrical treeing or penetrating channels. Thermal aging further reduces partial discharge inception voltage, causing voltage waveforms that were originally safe to enter a dangerous range later in service life [21-22].

IEC 60034-18-41 applies to Type I insulation systems expected to remain free of partial discharge during operation, while IEC 60034-18-42 applies to Type II insulation systems designed to withstand partial discharge activity [11-12]. This distinction shows that using corona resistant magnet wire alone cannot solve all problems. Motor winding structure, inverter output, cables, terminal overvoltage, impregnation, and manufacturing defects must be considered together.

In inverter-driven motors, enamelled wire is not an isolated material, but the most vulnerable interface influenced jointly by power devices, cables, winding topology, and the insulation system.

6. Is Adding Nanoparticles Enough for Corona-Resistant Enamelled Wire?

Introducing inorganic nanoparticles such as SiO₂ and Al₂O₃ into polymer enamel films can improve thermal performance and partial discharge resistance by modifying local electric fields, heat transfer, and discharge erosion paths. Existing studies have reported that properly dispersed surface-modified silica in enamel films can improve thermal stability and breakdown strength [20,23].

However, more nanoparticle content is not always better. Particle agglomeration may create electric field concentration and mechanical defects. Excessive polymer-particle interfaces may increase moisture sensitivity. Fillers may also reduce enamel flexibility and adhesion. For Hairpin rectangular wire, improving partial discharge resistance while causing cracking after bending cannot be considered reliable performance.

Therefore, evaluating corona-resistant enamelled wire requires comprehensive consideration of partial discharge life, breakdown voltage, adhesion, scratching resistance, bending performance, heat shock resistance, and post-forming defects, rather than simply comparing pulse endurance time.

7. The Most Common Failure Modes of Enamelled Wire Are Usually Not Caused by a Single Factor

8. Purchasing Enamelled Copper Wire Cannot Be Limited to “Wire Diameter + Temperature Class”

A purchase specification that only states “φ0.50 mm, Class 180 enamelled copper wire” cannot define a high-reliability product.

At minimum, the following requirements should be specified:

• Conductor shape, copper material grade, dimensional tolerance, and resistance requirements;

• Round or rectangular wire insulation system, single-layer/double-layer structure, and insulation class;

• Enamel build-up grade, maximum finished diameter, and minimum local insulation margin;

• Requirements for breakdown voltage, pinholes, flexibility, adhesion, abrasion resistance, and heat shock;

• Whether solderability, direct soldering temperature range, or specific stripping methods are required;

• Whether the wire contacts refrigerants, lubricating oils, impregnation resins, cleaning agents, or humid environments;

• Whether it is used for inverter-driven motors and requires PDIV, pulse life, or partial discharge resistance evaluation;

• Whether rectangular wire requires cross-sectional and electrical performance verification after Hairpin forming, twisting, and welding;

• Coil length, number of joints, winding arrangement, packaging, batch traceability, and online defect records.

For high-end motors, qualified bare wire is only the first threshold. More valuable data is whether the insulation can maintain sufficient margin after experiencing the customer’s actual winding tension, minimum bending radius, slot assembly, impregnation process, and thermal cycling.

9. Conclusion: Copper Core Delivers Electricity, Enamel Film Ensures Electricity Travels Only Where It Should

Enamelled copper wire appears to be nothing more than copper wire covered with an insulating coating. However, this thin layer exists at the smallest distance between adjacent turns, the first interface exposed to slot friction, the forefront of hotspot and refrigerant contact, and the area with the highest concentration of PWM electric fields.

It must be thin enough to improve slot fill factor, yet thick and uniform enough to withstand electrical breakdown. It must resist heat without becoming brittle after aging. It must maintain strong adhesion while remaining flexible during bending. It must also work together with impregnation resin, refrigerants, welding processes, and inverter waveforms.

Therefore, evaluating enamelled copper wire should not only ask “what is the temperature class?” but also: What type of resin system is used? Is it round wire or rectangular wire? How much insulation margin remains at the thinnest point after winding and forming? Does partial discharge occur under actual PWM rise times and cable lengths? How does PDIV change after thermal aging? Will impregnation materials and chemical environments affect the enamel film?

The true value of high-end enamelled copper wire is not achieving an extremely high initial breakdown voltage, but maintaining reliability after hundreds of thousands of bending cycles, thousands of hours of thermal exposure, and hundreds of millions of pulses—without allowing a tiny defect to develop into failure of the entire motor.

References and Standards

The following materials are used to support discussions on enamelled wire classification, thermal grades, winding insulation systems, partial discharge, thermal aging, and nano-composite enamel films. Actual procurement and certification should follow official standards and customer technical agreements.
